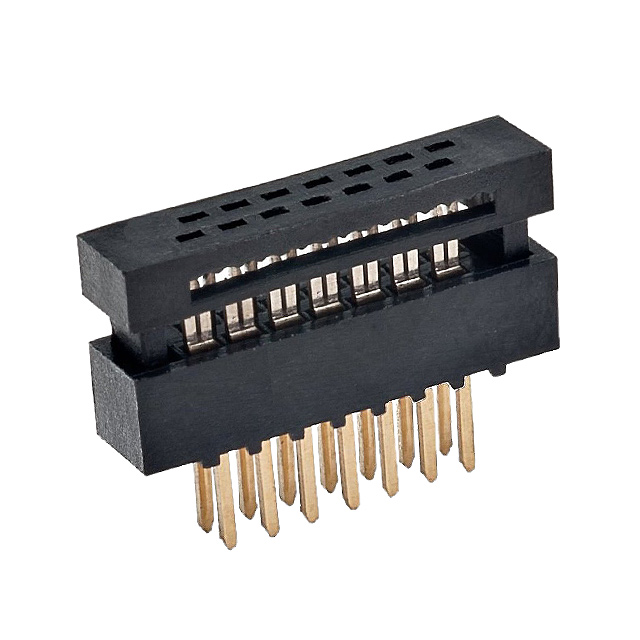

M50-3800742

M50-3800742

Part Number	M50-3800742
Manufacturer	Harwin
Other Part Numbers	952-2685-ND 3937-M50-3800742 952-2685
Description	CONN DIP HDR IDC 14P 30AWG VERT
Detailed Description	14 Position Ribbon Cable, DIP Header Connector IDC 30 AWG Through Hole
Manufacturer Standard Lead Time	17 weeks

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Board In, Direct Wire to Board
Manufacturer		Harwin
Series		Archer M50
Packaging		Tube
Part Status		Active
Features		Feed Through
Connector Type		Ribbon Cable, DIP Header
Contact Finish		Gold
Mounting Type		Through Hole
Wire Gauge		30 AWG
Number of Positions		14
Row Spacing		0.050" (1.27mm)
Number of Positions Loaded		All
Cable Termination		IDC
Cable Pitch		0.025" (0.64mm)
Board-Side Pitch		0.050" (1.27mm)
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		M50-3800742
Datasheets		M50,M52 Series Spec Sheet
Datasheets		M50-3000345
Datasheets		M50-3530842
Datasheets		M50-3800542
Datasheets		Harwin REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 226

Can ship immediately.
