M50-3142045R _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	M50-3142045R
Manufacturer	Harwin
Other Part Numbers	952-3932-2-ND 952-3932-1-ND 952-3932-6-ND 952-3932-1 952-3932-2 M50-3142045R-ND 3937-M50-3142045R 952-3932-6

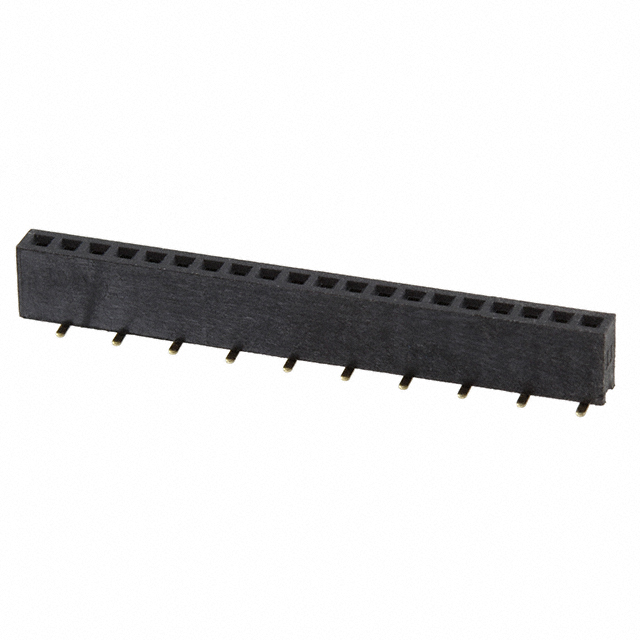

Description	CONN RCPT 20POS 0.05 GOLD SMD
Detailed Description	20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Harwin
Series		Archer M50
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Pick and Place
Connector Type		Receptacle
Voltage Rating		500VAC
Current Rating (Amps)		1A
Mounting Type		Surface Mount
Number of Positions		20
Style		Board to Board
Operating Temperature		-40°C ~ 105°C
Applications		General Purpose, Medical, Telecommunications
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.050" (1.27mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		12.0µin (0.30µm)
Contact Finish - Post		Tin
Contact Shape		Square
Insulation Height		0.134" (3.40mm)
Insulation Material		Polyamide (PA6T), Nylon 6T
Number of Rows		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
