M50-3030342 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	M50-3030342
Manufacturer	Harwin
Other Part Numbers	952-3575-ND 3937-M50-3030342 952-3575

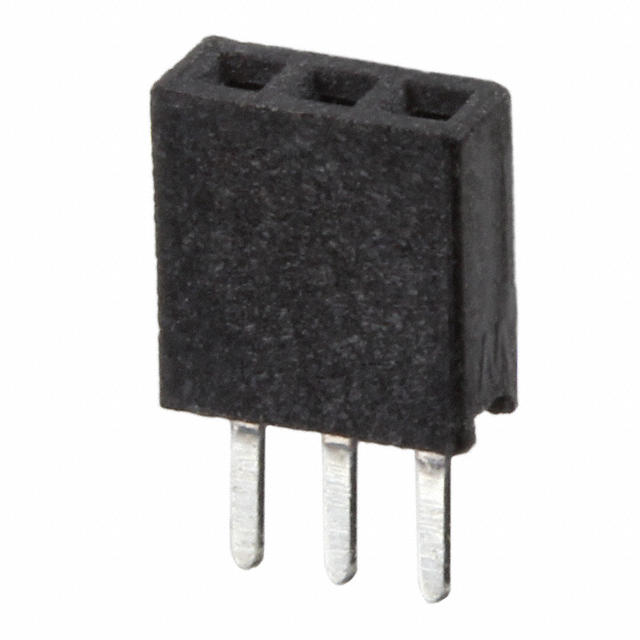

Description	CONN RCPT 3POS 0.05 GOLD PCB
Detailed Description	3 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Harwin
Series		Archer M50
Packaging		Tube
Part Status		Active
Connector Type		Receptacle
Current Rating (Amps)		1A
Mounting Type		Through Hole
Number of Positions		3
Style		Board to Board
Operating Temperature		-40°C ~ 105°C
Applications		General Purpose, Medical, Telecommunications
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Mated Stacking Heights		5.4mm, 6.08mm, 9.37mm
Insulation Color		Black
Pitch - Mating		0.050" (1.27mm)
Contact Finish - Mating		Gold
Contact Shape		Square
Contact Length - Post		0.094" (2.40mm)
Insulation Height		0.173" (4.40mm)
Insulation Material		Polyamide (PA6T), Nylon 6T
Number of Rows		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
