M49138B021000G

Part Number
M49138B021000G
Manufacturer Nuventix (BOYD)
Other Part Numbers
59-M49138B021000G-ND
59-M49138B021000G
665882
59-665882-ND

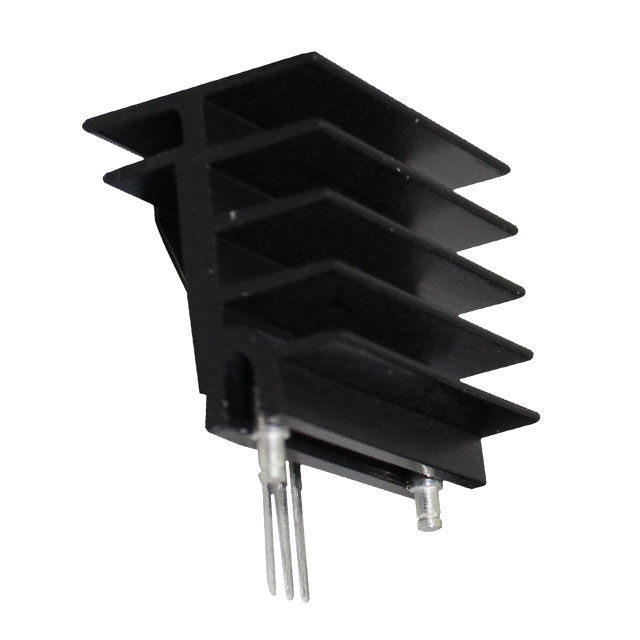

Description MAX CLIP HEATSINK
Detailed Description Heat Sink TO-126, TO-220, TO-247 Aluminum Board Level, Vertical
Manufacturer Standard Lead Time 7 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nuventix (BOYD)
Series
Max Clip System™
Packaging
Bulk
Part Status Active
Material Aluminum
Length 1.380" (35.05mm)
Shape Rectangular, Fins
Type Board Level, Vertical
Width 0.866" (22.00mm)
Package Cooled TO-126, TO-220, TO-247
Attachment Method Clip and PC Pin
Fin Height 1.260" (32.00mm)
Material Finish Black Anodized

Documents & Media

RESOURCE TYPE LINK
Datasheets M49138B021000G
Datasheets Heat Sink Fabrications Guide

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8473.30.5100
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

In Stock: 809

Can ship immediately.
