M3BBA-1018R

M3BBA-1018R

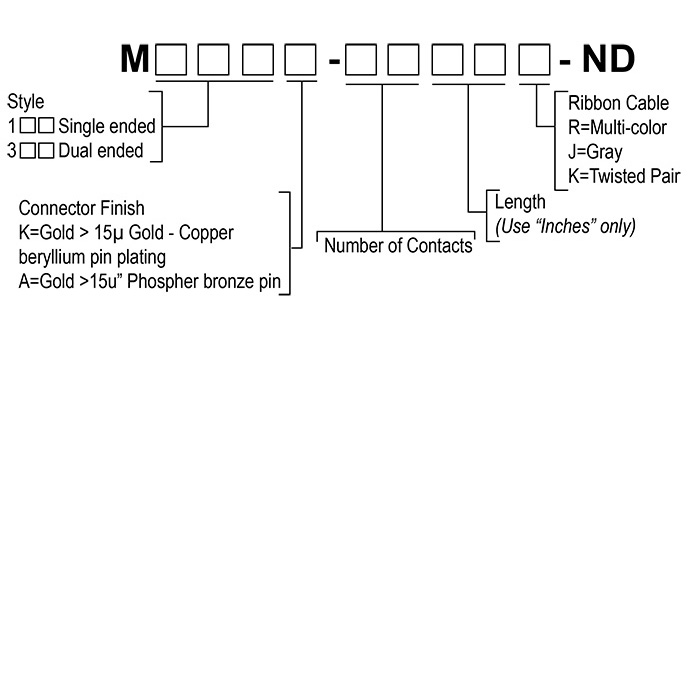

Part Number	M3BBA-1018R
Manufacturer	3M
Other Part Numbers	M3BBA-1018R-ND
Description	IDC CABLE - MSR10A/MC10M/MSR10A

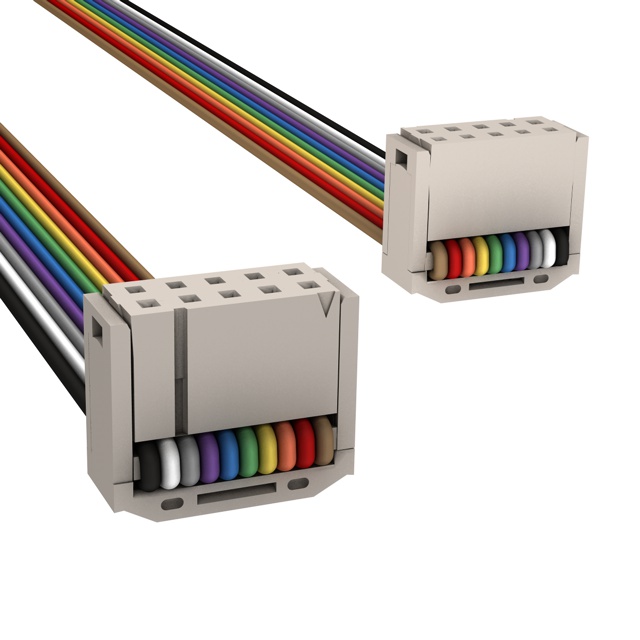

Detailed Description	10 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
Datasheet	Datasheet

Product Attributes

Category		Cable Assemblies Rectangular Cable Assemblies
Manufacturer		3M
Series
Packaging		Bulk
Part Status		Active
Features		Strain Relief
Connector Type		Socket to Socket
Contact Finish		Gold
Color		Multiple, Ribbon
Length		1.50' (457.20mm)
Shielding		Unshielded
Number of Positions		10
Number of Rows		2
Contact Finish Thickness		30.0µin (0.76µm)
Cable Termination		IDC
Pitch - Cable		0.050" (1.27mm)
Pitch - Connector		0.100" (2.54mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		M3BBA-1018R
Datasheets		1700 Series
Datasheets		891 Series Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.42.9090
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		RoHS Compliant
