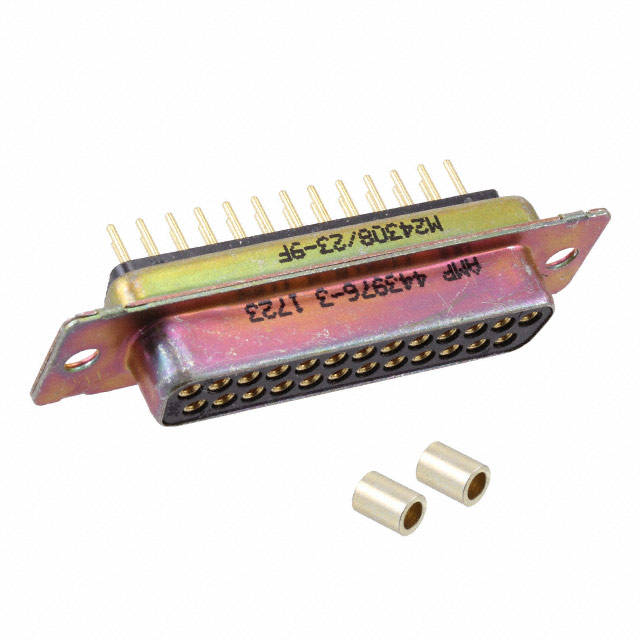

M24308/23-9F _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	M24308/23-9F
Manufacturer	TE Connectivity Aerospace Defense and Marine
Other Part Numbers	1122-1284-ND M24308/23-9F-MIL 1122-1284 M24308/23-9F-ND 443976-3-MIL 443976-3-ND 443976-3
Description	CONN D-SUB RCPT 25POS VERT SLDR
Detailed Description	25 Position D-Sub Receptacle, Female Sockets Connector
Manufacturer Standard Lead Time	7 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		TE Connectivity Aerospace Defense and Marine
Series		Military, MIL-DTL-24308, AMPLIMITE 109
Packaging		Bulk
Part Status		Active
Connector Type		Receptacle, Female Sockets
Contact Finish		Gold
Color		Black
Current Rating (Amps)		5A
Mounting Type		Through Hole
Number of Positions		25
Number of Rows		2
Operating Temperature		-55°C ~ 125°C
Contact Type		Signal
Flange Feature		Housing/Shell (Unthreaded)
Termination		Solder
Connector Style		D-Sub
Contact Finish Thickness		10.0µin (0.25µm)
Shell Material, Finish		Steel, Cadmium Plated
Contact Material		Brass
Shell Size, Connector Layout		3 (DB, B)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
