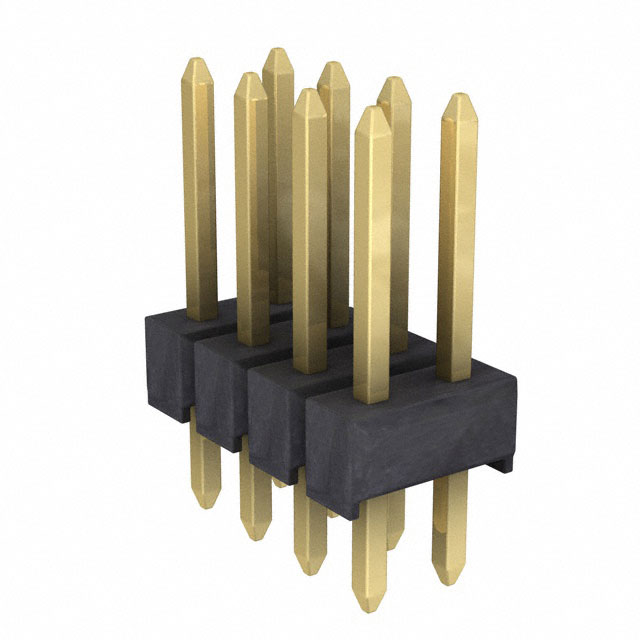

M20-9720445 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	M20-9720445
Manufacturer	Harwin
Other Part Numbers	952-2375-ND 952-2375 M20-9720445-ND M209720445 3937-M20-9720445
Description	CONN HEADER VERT 8POS 2.54MM
Detailed Description	Connector Header Through Hole 8 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	15 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Harwin
Series		M20
Packaging		Bulk
Part Status		Active
Connector Type		Header, Cuttable
Current Rating (Amps)		3A per Contact
Mounting Type		Through Hole
Number of Positions		8
Number of Rows		2
Style		Board to Board or Cable
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Mated Stacking Heights		9.94mm, 10.64mm, 11.04mm, 16.54mm
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Shape		Square
Contact Length - Post		0.122" (3.10mm)
Insulation Height		0.100" (2.54mm)
Shrouding		Unshrouded
Overall Contact Length		0.496" (12.60mm)
Insulation Material		Polyamide (PA6T), Nylon 6T
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.276" (7.00mm)

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
