M20-9600545

Part Number
M20-9600545
Manufacturer Harwin
Other Part Numbers
952-1925-ND
952-1925
M209600545

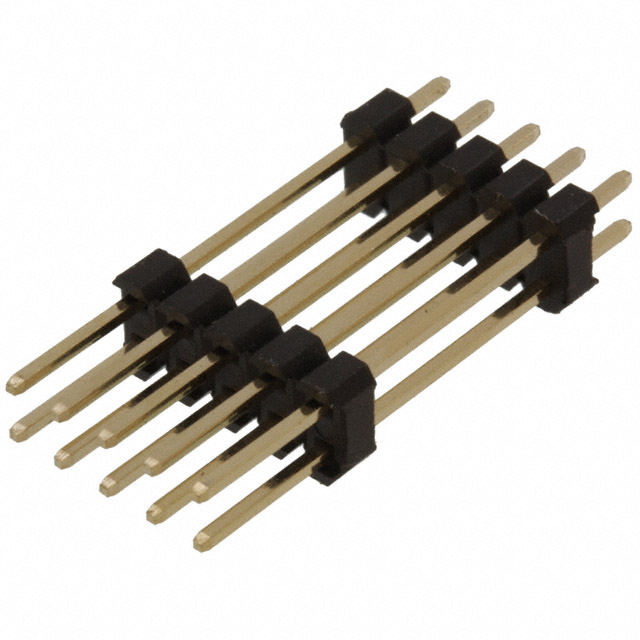

Description CONN HDR 10POS 0.1 STACK T/H
Detailed Description 10 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Product Attributes

Category
Manufacturer Harwin
Series
M20
Packaging
Bulk
Part Status Obsolete
Color Black
Mounting Type Through Hole
Pitch 0.100" (2.54mm)
Row Spacing 0.100" (2.54mm)
Termination Solder
Contact Finish - Post (Mating) Gold
Number of Rows 2
Number of Positions 10
Length - Overall Pin 1.063" (27.000mm)
Length - Post (Mating) 0.283" (7.200mm)
Length - Stack Height 0.661" (16.800mm)
Length - Tail 0.118" (3.000mm)

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
