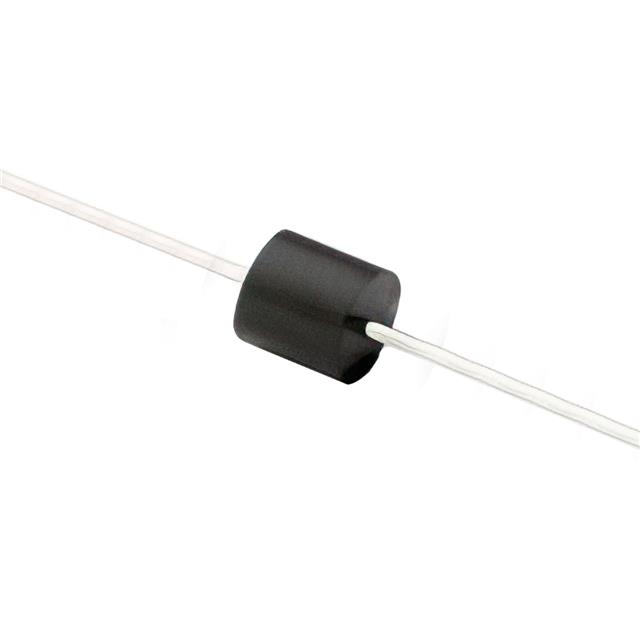

M15KP75A

Part Number
M15KP75A
Manufacturer MDE Semiconductor Inc.
Other Part Numbers
3811-M15KP75A-ND
3811-M15KP75A
Description TVS DIODE UP 75VRWM 122.0VC
Detailed Description 122V Clamp 123.8A Ipp Tvs Diode Through Hole P600
Datasheet Datasheet

Product Attributes

Category
Manufacturer MDE Semiconductor Inc.
Series
M15KP
Packaging
Bulk
Part Status Active
Package / Case P600, Axial
Mounting Type Through Hole
Type Zener
Operating Temperature -55°C ~ 175°C (TJ)
Applications General Purpose
Current - Peak Pulse (10/1000µs) 123.8A
Voltage - Reverse Standoff (Typ) 75V
Supplier Device Package P600
Unidirectional Channels 1
Voltage - Breakdown (Min) 83.8V
Voltage - Clamping (Max) @ Ipp 122V
Power - Peak Pulse 15000W (15kW)
Power Line Protection No

Documents & Media

RESOURCE TYPE LINK
Datasheets M15KP75A

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH info available upon request
RoHS Status ROHS3 Compliant
