M054ZAN

Part Number
M054ZAN
Manufacturer Nuvoton Technology Corporation
Other Part Numbers
M054ZAN-ND
Description IC MCU 32BIT 16KB FLASH 33QFN
Detailed Description ARM® Cortex®-M0 NuMicro M051™ Microcontroller IC 32-Bit Single-Core 50MHz 16KB (16K x 8) FLASH
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nuvoton Technology Corporation
Series
NuMicro M051™
Packaging
Tray
Part Status Obsolete

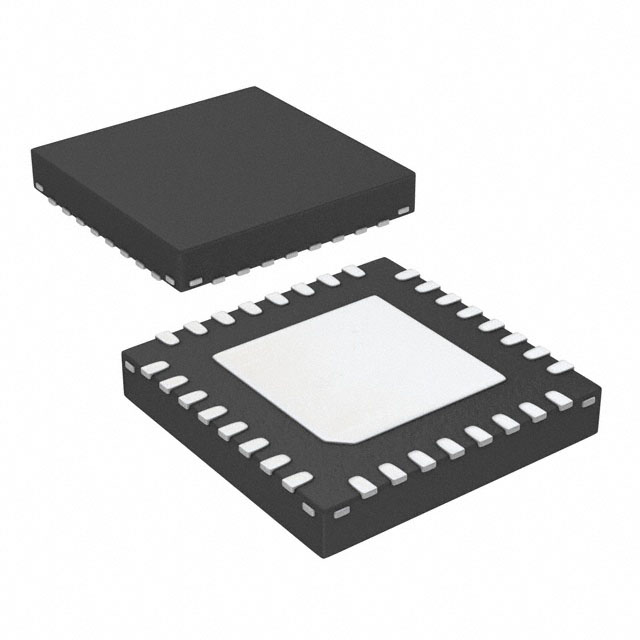

Package / Case 32-WFQFN Exposed Pad
Mounting Type Surface Mount
Speed 50MHz
Program Memory Size 16KB (16K x 8)
RAM Size 4K x 8
Operating Temperature -40°C ~ 85°C (TA)
Oscillator Type Internal
Program Memory Type FLASH
Core Processor ARM® Cortex®-M0
Data Converters A/D 5x12b
Core Size 32-Bit Single-Core
Voltage - Supply (Vcc/Vdd) 2.5V ~ 5.5V
Connectivity I2C, IrDA, SPI, UART/USART
Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
Number of I/O 24
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets M054ZAN
Datasheets M05xxxAN 01-Apr-2022

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 3A991A2
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
