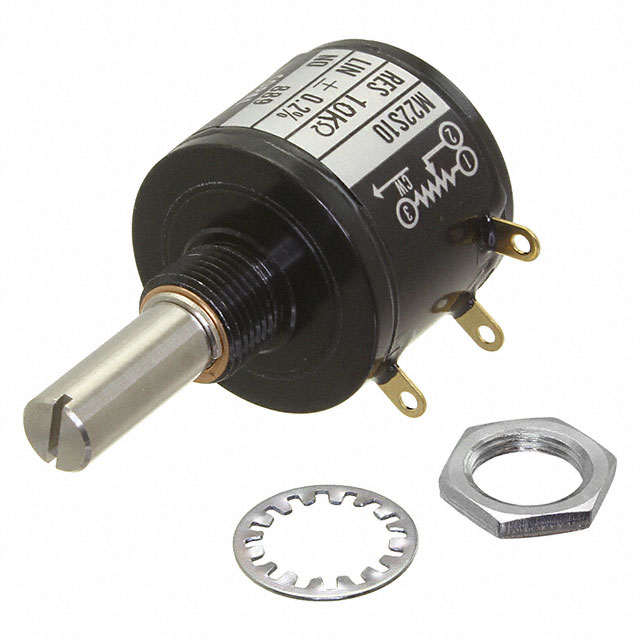

M-22S10 1K

Part Number
M-22S10 1K
Manufacturer Nidec Copal Electronics (Nidec Components)
Other Part Numbers
563-2127-ND
M-22S10 1K-ND
M-22S101K
Q5951208
563-2127
Q2910620
M-22S101K-ND
Description POT 1K OHM 2W WIREWOUND LINEAR
Detailed Description 1k Ohm 1 Gang Linear Panel Mount Potentiometer None 10.0 Kierros Wirewound 2W Solder Lug
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nidec Copal Electronics (Nidec Components)
Series
M-22
Packaging
Bulk
Part Status Active
Resistance (Ohms) 1k
Power (Watts) 2W
Tolerance ±0.2%
Temperature Coefficient ±50ppm/°C
Adjustment Type User Defined
Mounting Type Panel Mount
Termination Style Solder Lug
Bushing Thread M9 x 0.75
Actuator Length 0.906" (23.00mm)
Actuator Type Slotted
Built in Switch None
Actuator Diameter 0.236" (6.00mm)
Resistive Material Wirewound
Taper Linear
Rotation 3600°
Size - Body Round - 0.866" Dia (22.00mm)
Number of Gangs 1
Number of Turns 10

Documents & Media

RESOURCE TYPE LINK
Datasheets M-22S10 1K
Datasheets Epoxy Chg 13/APR/2022

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.31.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant

In Stock: 355

Can ship immediately.
