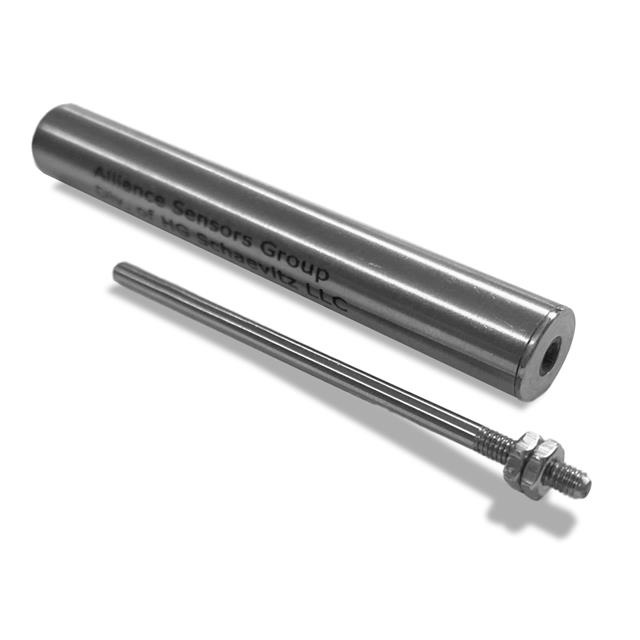

LZE-9.5-12.7-A-00-10-S

LZE-9.5-12.7-A-00-10-S

Part Number	LZE-9.5-12.7-A-00-10-S
Manufacturer	H.G. Schaevitz, LLC / Alliance Sensors Group
Other Part Numbers	1817-LZE-9.5-12.7-A-00-10-S-ND 1817-LZE-9.5-12.7-A-00-10-S
Description	LINEAR POSITION SENSOR 0.50" RAN
Detailed Description	LVIT (Linear Variable Inductance Transducer) Sensor Linear Position Round Shaft Cable
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Position Sensors Angle, Linear Position Measuring
Manufacturer		H.G. Schaevitz, LLC / Alliance Sensors Group
Series		LZ-9.5
Packaging		Bag
Part Status		Active
Package / Case		Cylinder, Wire Leads
Mounting Type		Chassis Mount
Output		0 V ~ 10 V
Operating Temperature		-20°C ~ 105°C
Termination Style		Cable
Voltage - Supply		8V ~ 30V
Linearity		±0.15%
Linear Range		0 ~ 12.70mm (0 ~ 0.50")
Actuator Type		Round Shaft
Technology		LVIT (Linear Variable Inductance Transducer)
For Measuring		Linear Position

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LZE-9.5-12.7-A-00-10-S
Datasheets		Standard LZ-9.5 Outline

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8543.70.9860
Moisture Sensitivity Level (MSL)		1 (Unlimited)
