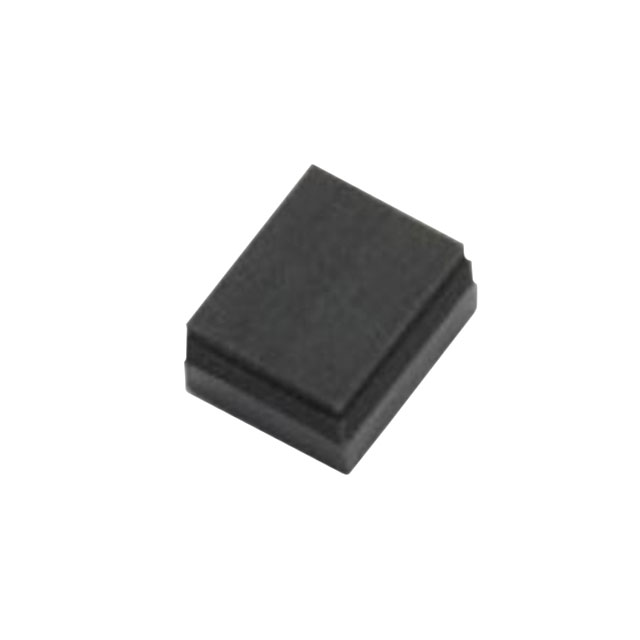

Part Number |
LXDC2HN12A-099
|
---|---|
Manufacturer | TOKO / Murata |
Other Part Numbers |
LXDC2HN12A-099-ND
|
Description | DC DC CONVERTER 1.2V 1W |
Detailed Description | Non-Isolated PoL Module, Conformal Coated DC DC Converter 1 Output 1.2V 600mA 2.3V - 5.5V Input |
Category | ||
---|---|---|
Manufacturer | TOKO / Murata | |
Series |
LXDC2HN
|
|
Packaging |
Tape & Reel (TR)
|
|
Part Status | Obsolete | |
Features | OCP, UVLO | |
Package / Case | 4-SMD Module | |
Size / Dimension | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.1mm) | |
Mounting Type | Surface Mount | |
Type | Non-Isolated PoL Module, Conformal Coated | |
Operating Temperature | -40°C ~ 85°C | |
Applications | ITE (Commercial) | |
Voltage - Input (Max) | 5.5V | |
Efficiency | 80% | |
Current - Output (Max) | 600mA | |
Voltage - Input (Min) | 2.3V | |
Voltage - Output 1 | 1.2V | |
Power (Watts) | 1 W | |
Number of Outputs | 1 |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
