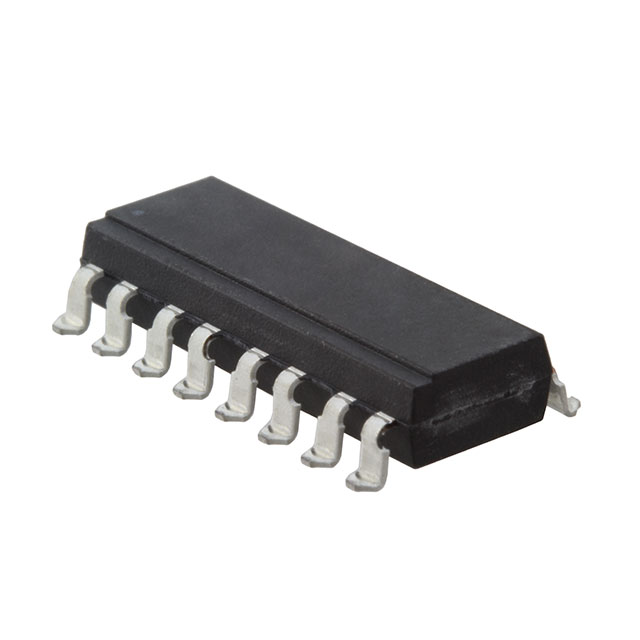

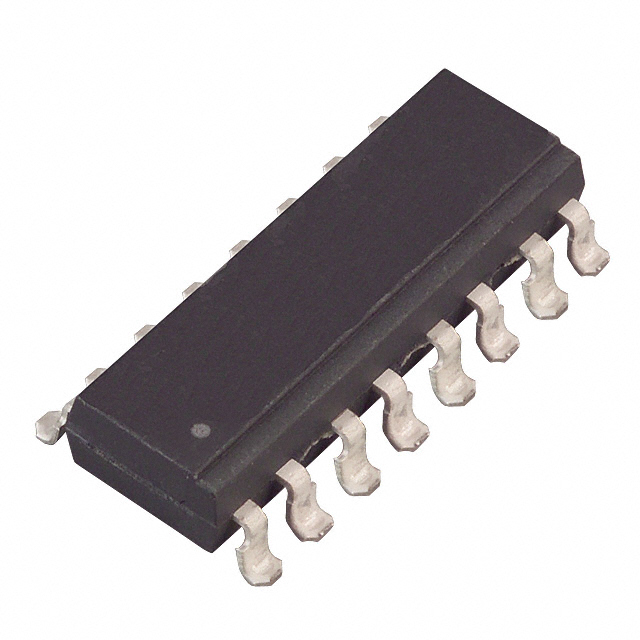

LTV-8441S _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	LTV-8441S
Manufacturer	LITEON
Other Part Numbers	LTV-8441S-ND
Description	OPTOISO 5KV 4CH DARLINGTON 16SMD
Detailed Description	Optoisolator Darlington Output 5000Vrms 4 Channel 16-SMD

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		LITEON
Series
Packaging		Tube
Part Status		Active
Package / Case		16-SMD, Gull Wing
Output Type		Darlington
Mounting Type		Surface Mount
Operating Temperature		-30°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		AC, DC
Current - Output / Channel		80mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		600% @ 1mA
Vce Saturation (Max)		1V
Current Transfer Ratio (Max)		7500% @ 1mA
Supplier Device Package		16-SMD
Voltage - Output (Max)		35V
Rise / Fall Time (Typ)		60µs, 53µs
Number of Channels		4
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
