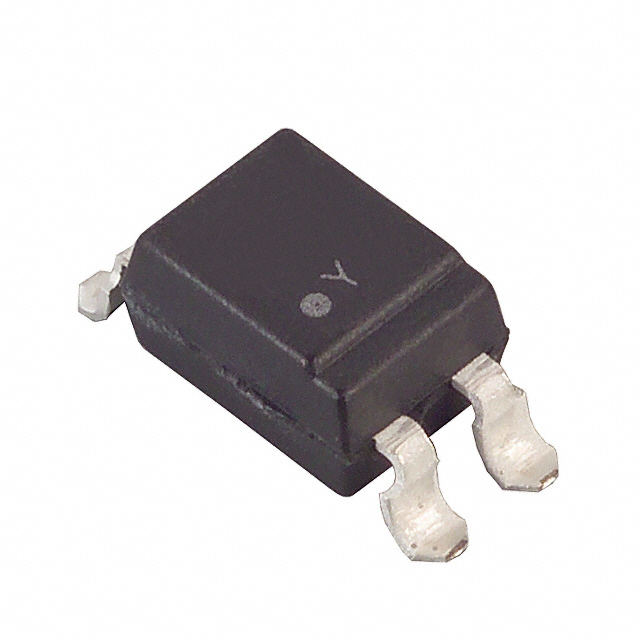

LTV-814HS-TA1 _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	LTV-814HS-TA1
Manufacturer	LITEON
Other Part Numbers	160-2036-2-ND 160-2036-1-ND 160-2036-6-ND 160-2036-6 LTV814HSTA1 160-2036-2 LTV-814HS-TA1-ND 160-2036-1
Description	OPTOISOLATR 5KV TRANSISTOR 4-SMD
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Manufacturer Standard Lead Time	12 weeks

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		LITEON
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-30°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.4V
Input Type		AC, DC
Current - Output / Channel		80mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		20% @ 100mA
Vce Saturation (Max)		200mV
Current Transfer Ratio (Max)		80% @ 100mA
Supplier Device Package		4-SMD
Voltage - Output (Max)		35V
Rise / Fall Time (Typ)		4µs, 3µs
Number of Channels		1
Current - DC Forward (If) (Max)		150 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
