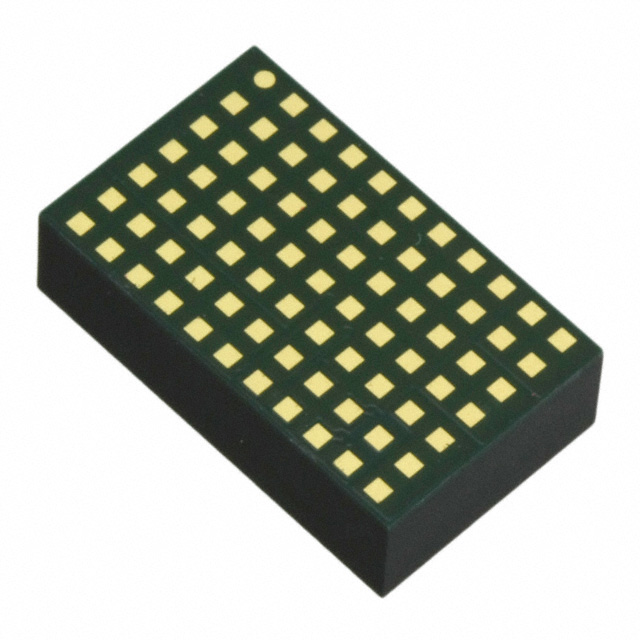

LTM8061EV-4.2#PBF

LTM8061EV-4.2#PBF

Part Number	LTM8061EV-4.2#PBF
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	LTM8061EV-4.2#PBF-ND -2735-LTM8061EV-4.2#PBF
Description	IC BATT CHG LI-ION 1CELL 77LGA
Detailed Description	Charger IC Lithium Ion/Polymer 77-LGA (15x9)
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Battery Chargers
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series		µModule®
Packaging		Tray
Part Status		Active
Package / Case		77-BLGA
Number of Cells		1
Mounting Type		Surface Mount
Operating Temperature		0°C ~ 125°C (TA)
Battery Chemistry		Lithium Ion/Polymer
Supplier Device Package		77-LGA (15x9)
Charge Current - Max		2A
Programmable Features		Current, Timer
Voltage - Supply (Max)		32V
Battery Pack Voltage		4.2V
Current - Charging		Constant - Programmable

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LTM8061EV-4.2#PBF
Datasheets		Material Declaration LTM8061EV-4.2#PBF
Datasheets		Substrate Design revision 13/Dec/2021
Datasheets		Mark Conversion 21/Jul/2021
Datasheets		Mult Dev 28/Feb/2020

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 138

Can ship immediately.
