LTM8040IV#PBF _ LED Drivers_Power Supplies

Part Number	LTM8040IV#PBF
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	505-LTM8040IV#PBF-ND 505-LTM8040IV#PBF LTM8040IV#PBF-ND -2735-LTM8040IV#PBF LTM8040IVPBF
Description	LED DRIVER CC BUCK 2.5-13V 1A
Detailed Description	1A 2.5 ~ 13V Constant Current LED Driver Buck Topology 1 Output
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount LED Drivers
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series		µModule®
Packaging		Tray
Part Status		Active
Features		Remote On/Off, OTP, SCP, UVLO

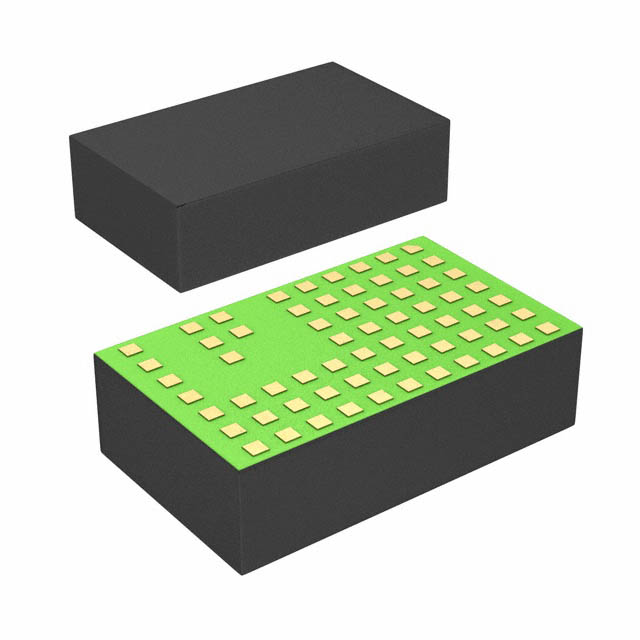

Package / Case		66-LGA
Size / Dimension		0.59" L x 0.35" W x 0.17" H (15.0mm x 9.0mm x 4.3mm)
Voltage - Output		2.5 ~ 13V
Mounting Type		Surface Mount
Type		Constant Current
Weight		0.004 lb (1.81 g)
Operating Temperature		-40°C ~ 125°C
Voltage - Input (Max)		36V
Topology		Buck
Current - Output (Max)		1A
Dimming		Analog, PWM
Voltage - Input (Min)		3.5V
Power (Watts)		13 W
Number of Outputs		1

RESOURCE TYPE		LINK
Datasheets		LTM8040IV#PBF
Product Training Modules		High Voltage µModule DC/DC Regulators
Product Training Modules		µModule: Power Module vs Discrete DC to DC
Video File		Power µModule® Solutions
Video File		Power µModule® Solutions
Design Resources		Lighting Product Selector
Reference Design Library		DC1274A: 1A @ 13V Max, 4 ~ 36V in
PCN Design/Specification		Mark Conversion 21/Jul/2021
PCN Assembly/Origin		Mult Dev 28/Feb/2020
Simulation Models		LTM8040 Spice Model
Product Drawings		LTM Series_15x15x4.3

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
