LTC4055EUF-1#TRPBF

LTC4055EUF-1#TRPBF

Part Number	LTC4055EUF-1#TRPBF
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	LTC4055EUF-1#TRPBF-ND
Description	IC BATT CHG LI-ION 1CELL 16QFN
Detailed Description	Charger IC Lithium Ion 16-QFN (4x4)
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Battery Chargers
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tape & Reel (TR)
Part Status		Active

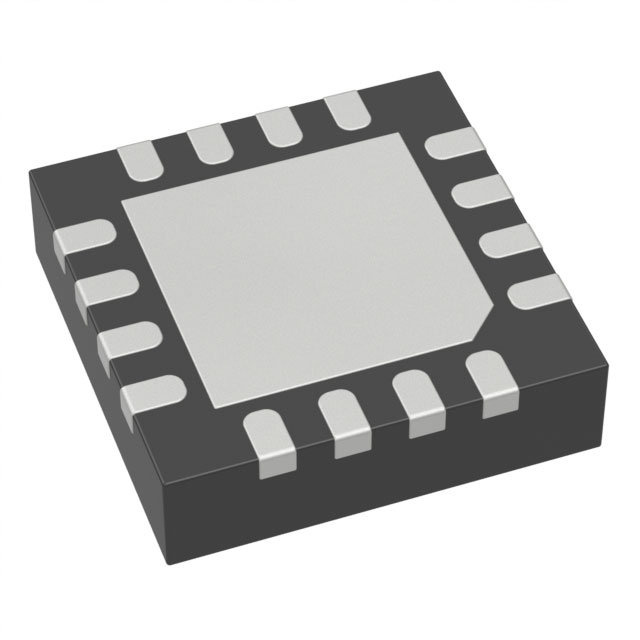

Package / Case		16-WQFN Exposed Pad
Number of Cells		1
Mounting Type		Surface Mount
Interface		USB
Operating Temperature		-40°C ~ 85°C (TA)
Battery Chemistry		Lithium Ion
Supplier Device Package		16-QFN (4x4)
Charge Current - Max		1A
Programmable Features		Timer
Fault Protection		Over Temperature, Reverse Current
Voltage - Supply (Max)		5.5V
Battery Pack Voltage		4.1V
Current - Charging		Constant - Programmable

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LTC4055EUF-1#TRPBF
Datasheets		Tape and Reel Packaging

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
