LTC3615MPUF-1#PBF _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LTC3615MPUF-1#PBF
Manufacturer	Linear Technology
Other Part Numbers	2156-LTC3615MPUF-1#PBF-ND 2156-LTC3615MPUF-1#PBF ANALINLTC3615MPUF-1#PBF
Description	IC REG BUCK ADJ 3A DL 24QFN
Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.6V 2 Output 3A 24-WFQFN Exposed Pad

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Linear Technology
Series
Packaging		Bulk
Part Status		Active

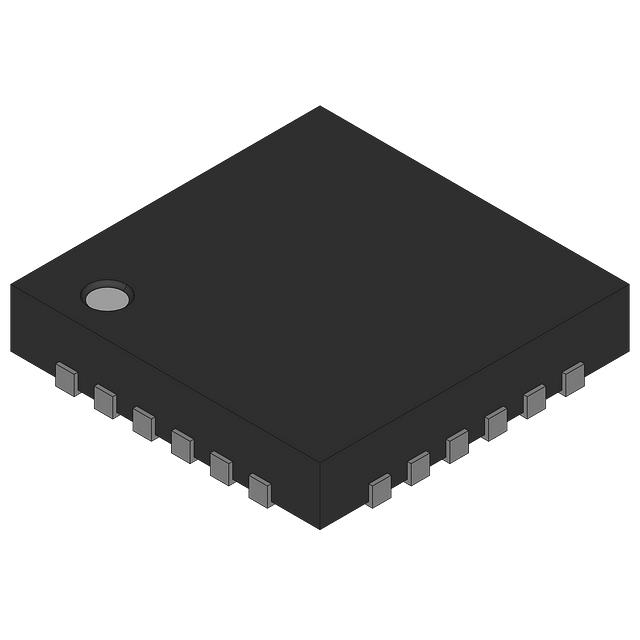

Package / Case		24-WFQFN Exposed Pad
Output Type		Adjustable
Mounting Type		Surface Mount
Number of Outputs		2
Function		Step-Down
Current - Output		3A
Operating Temperature		-55°C ~ 150°C (TJ)
Output Configuration		Positive
Frequency - Switching		400kHz ~ 4MHz
Voltage - Input (Max)		5.5V
Topology		Buck
Supplier Device Package		24-QFN (4x4)
Synchronous Rectifier		Yes
Voltage - Output (Max)		5.5V
Voltage - Input (Min)		2.25V
Voltage - Output (Min/Fixed)		0.6V
