LTC2311HMSE-14#WTRPBF _ Analog to Digital Converters (ADC)_Data Acquisition_Integrated Circuits (ICs)

Part Number	LTC2311HMSE-14#WTRPBF
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	505-LTC2311HMSE-14#WTRPBFTR-ND 505-LTC2311HMSE-14#WTRPBFTR
Description	14-B + SIGN, 5MSPS DIFF IN ADC W
Detailed Description	14 Bit Analog to Digital Converter 1 Input 1 SAR 16-MSOP-EP
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC)
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tape & Reel (TR)
Part Status		Active

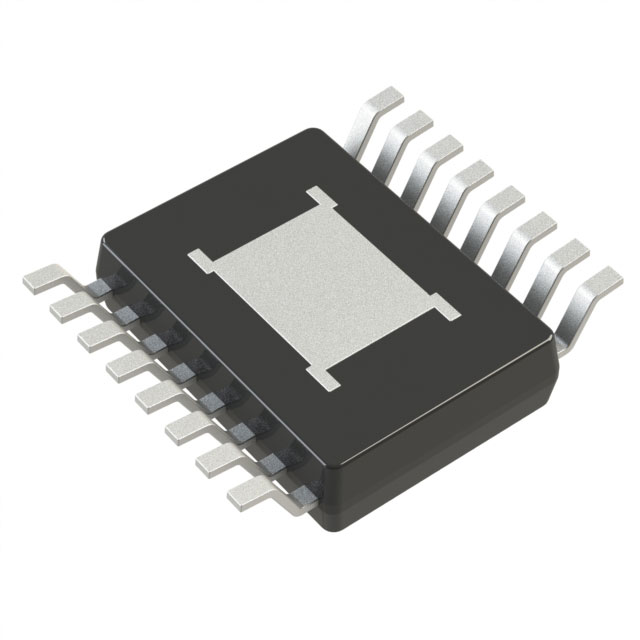

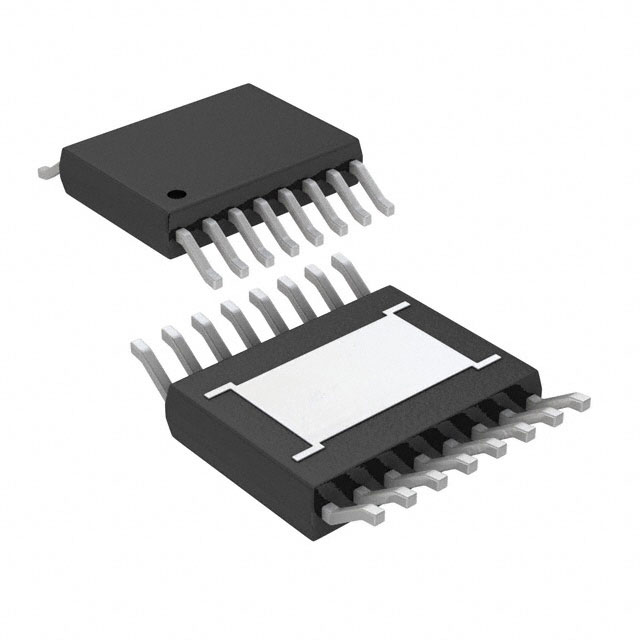

Package / Case		16-TFSOP (0.118", 3.00mm Width) Exposed Pad
Mounting Type		Surface Mount
Number of Bits		14
Configuration		S/H-ADC
Data Interface		LVDS - Serial, SPI
Reference Type		External, Internal
Operating Temperature		-40°C ~ 125°C
Voltage - Supply, Analog		3.13V ~ 3.47V, 4.75V ~ 5.25V
Voltage - Supply, Digital		3.13V ~ 3.47V, 4.75V ~ 5.25V
Sampling Rate (Per Second)		5M
Input Type		Differential
Number of Inputs		1
Supplier Device Package		16-MSOP-EP
Architecture		SAR
Ratio - S/H:ADC		1:1
Grade		Automotive
Number of A/D Converters		1
Qualification		AEC-Q100

RESOURCE TYPE		LINK
Datasheets		LTC2311HMSE-14#WTRPBF
