Part Number |
LT8386EV#PBF
|
---|---|
Manufacturer | Linear Technology (Analog Devices, Inc.) |
Other Part Numbers |
505-LT8386EV#PBF-ND
505-LT8386EV#PBF
-2735-LT8386EV#PBF
|
Description | IC LED DRVR RGLTR PWM 3A 28LQFN |
Detailed Description | LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 3A 28-LQFN (4x5) |
Manufacturer Standard Lead Time | 10 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Linear Technology (Analog Devices, Inc.) | |
Series | ||
Packaging |
Tray
|
|
Part Status | Active | |

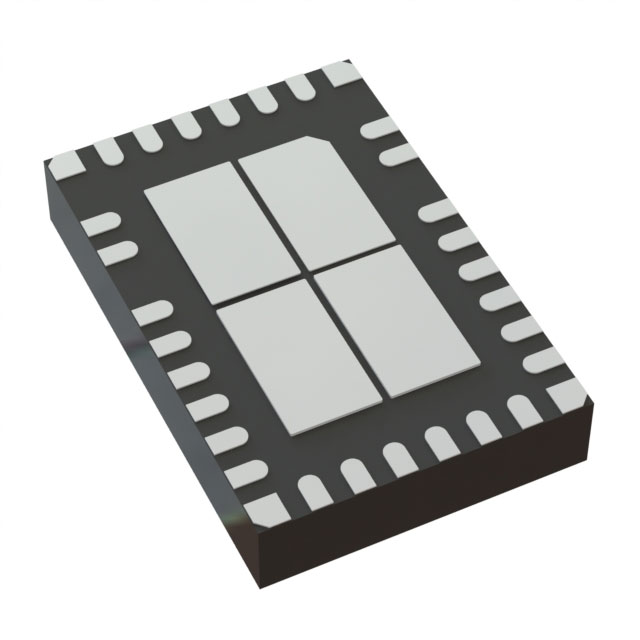

Package / Case | 28-TFQFN Exposed Pad, 26 Leads | |
Voltage - Output | 1.2V ~ 56V | |
Mounting Type | Surface Mount | |
Number of Outputs | 1 | |
Frequency | 200kHz ~ 2MHz | |
Type | DC DC Regulator | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Current - Output / Channel | 3A | |
Internal Switch(s) | No | |
Topology | Step-Up (Boost) | |
Supplier Device Package | 28-LQFN (4x5) | |
Dimming | PWM | |
Voltage - Supply (Min) | 4V | |
Voltage - Supply (Max) | 56V | |
Grade | Automotive | |
Qualification | AEC-Q100 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | LT8386EV#PBF |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
