LT3598EFE#PBF

Part Number
LT3598EFE#PBF
Manufacturer Linear Technology (Analog Devices, Inc.)
Other Part Numbers
LT3598EFE#PBF-ND
LT3598EFEPBF
-2735-LT3598EFE#PBF
Description IC LED DRV RGLTR PWM 24TSSOP
Detailed Description LED Driver IC 6 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 30mA 24-TSSOP
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Linear Technology (Analog Devices, Inc.)
Series
True Color PWM™
Packaging
Tube
Part Status Active

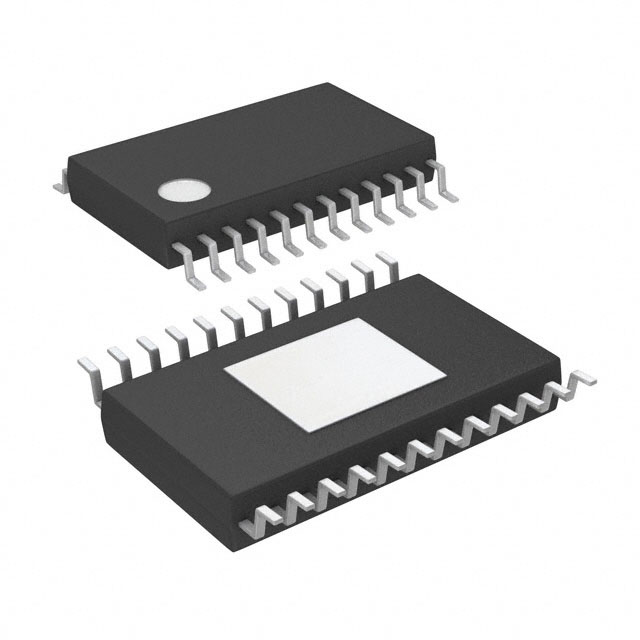

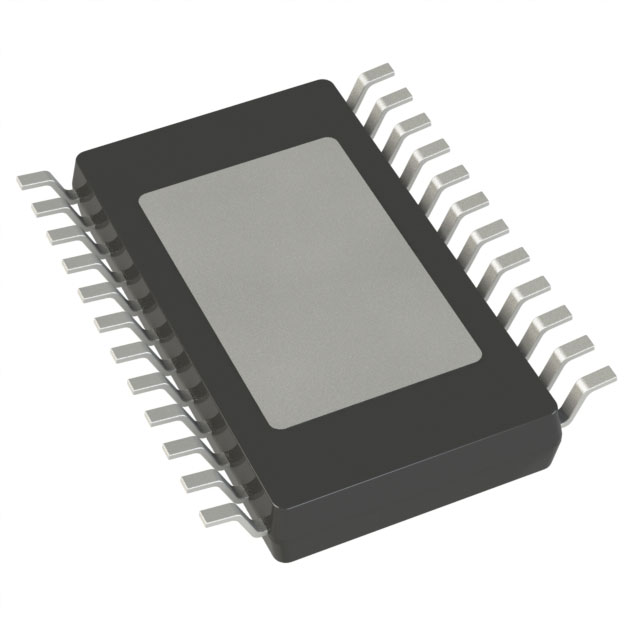

Package / Case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Voltage - Output 44V
Mounting Type Surface Mount
Number of Outputs 6
Frequency 200kHz ~ 2.5MHz
Type DC DC Regulator
Operating Temperature -40°C ~ 125°C (TJ)
Current - Output / Channel 30mA
Internal Switch(s) Yes
Topology Step-Up (Boost)
Supplier Device Package 24-TSSOP
Dimming Analog, PWM
Voltage - Supply (Min) 3V
Voltage - Supply (Max) 30V

Documents & Media

RESOURCE TYPE LINK
Datasheets LT3598EFE#PBF
Datasheets Material Declaration LT3598EFE#PBF

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1080

Can ship immediately.
