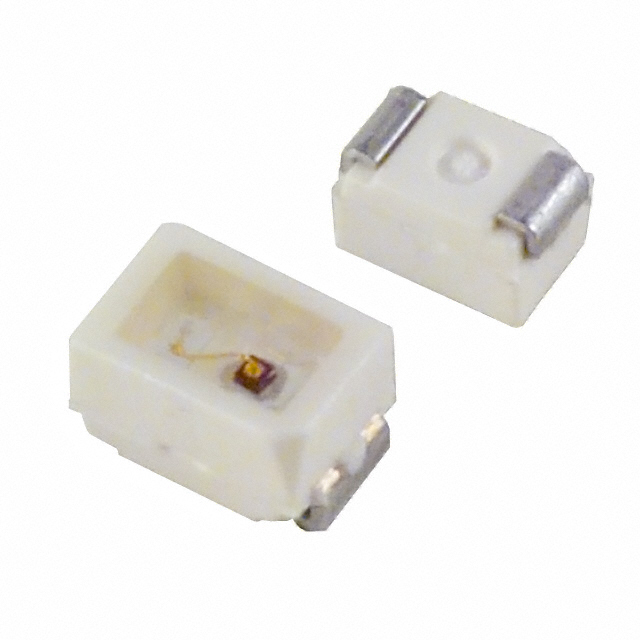

LS M67F-U2-1-G3R3-20-R18-Z-XX

LS M67F-U2-1-G3R3-20-R18-Z-XX

Part Number	LS M67F-U2-1-G3R3-20-R18-Z-XX
Manufacturer	ams-OSRAM USA INC.
Other Part Numbers	475-LSM67F-U2-1-G3R3-20-R18-Z-XXTR-ND 4991-LSM67F-U2-1-G3R3-20-R18-Z-XXTR 475-LSM67F-U2-1-G3R3-20-R18-Z-XXTR Q65113A2957 4991-LSM67F-U2-1-G3R3-20-R18-Z-XXTR-ND 475-LSM67F-U2-1-G3R3-20-R18-Z-XXTR-ND
Description	LED RED CLEAR SMD
Detailed Description	Red 633nm LED Indication - Discrete 2.2V 2-SMD, J-Lead
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Indication - Discrete
Manufacturer		ams-OSRAM USA INC.
Series		Mini TOPLED®
Packaging		Tape & Reel (TR)
Part Status		Last Time Buy
Package / Case		2-SMD, J-Lead
Color		Red
Size / Dimension		2.00mm L x 1.40mm W
Mounting Type		Surface Mount
Millicandela Rating		635mcd
Voltage - Forward (Vf) (Typ)		2.2V
Current - Test		20mA
Viewing Angle		120°
Height (Max)		1.40mm
Wavelength - Peak		645nm
Wavelength - Dominant		633nm
Supplier Device Package		SMD
Lens Style		Rectangle with Flat Top
Lens Size		1.50mm x 1.00mm

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LS M67F-U2-1-G3R3-20-R18-Z-XX
Datasheets		Mult Dev Dry Pack Process Chg 4/Apr/2022

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		2 (1 Year)
RoHS Status		ROHS3 Compliant
