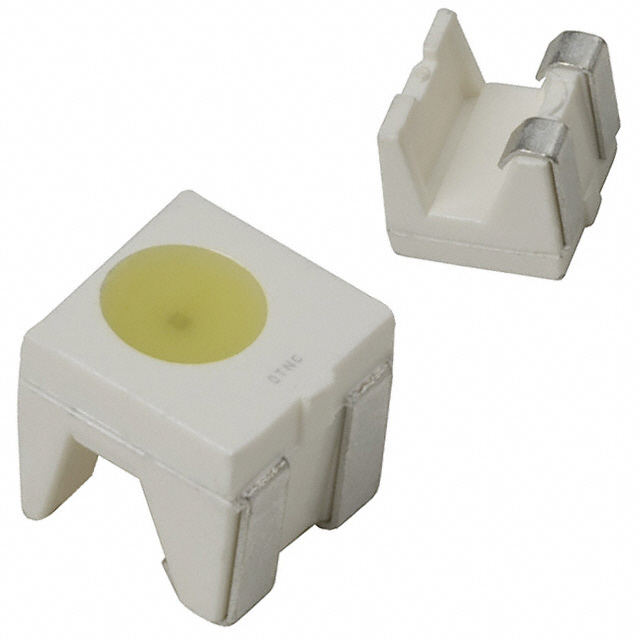

LS A676-Q1R1-1-0-20-R33-Z-HE

Part Number
LS A676-Q1R1-1-0-20-R33-Z-HE
Manufacturer ams-OSRAM USA INC.
Other Part Numbers
475-LSA676-Q1R1-1-0-20-R33-Z-HETR-ND
4991-LSA676-Q1R1-1-0-20-R33-Z-HETR-ND
4991-LSA676-Q1R1-1-0-20-R33-Z-HETR
Q65110A5018
475-LSA676-Q1R1-1-0-20-R33-Z-HETR-ND
475-LSA676-Q1R1-1-0-20-R33-Z-HETR
Description LED RED CLEAR SMD R/A
Detailed Description Red 633nm LED Indication - Discrete 2V 2-SMD, Boomerang
Datasheet Datasheet

Product Attributes

Category
Manufacturer ams-OSRAM USA INC.
Series
SIDELED®
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case 2-SMD, Boomerang
Color Red
Size / Dimension 4.00mm L x 3.60mm W
Mounting Type Surface Mount, Right Angle
Millicandela Rating 105.5mcd
Voltage - Forward (Vf) (Typ) 2V
Lens Color Colorless
Current - Test 20mA
Viewing Angle 120°
Height (Max) 4.20mm
Wavelength - Peak 645nm
Wavelength - Dominant 633nm
Supplier Device Package SMD
Lens Transparency Clear
Lens Style Round with Flat Top
Lens Size 2.40mm Dia

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 2 (1 Year)
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
