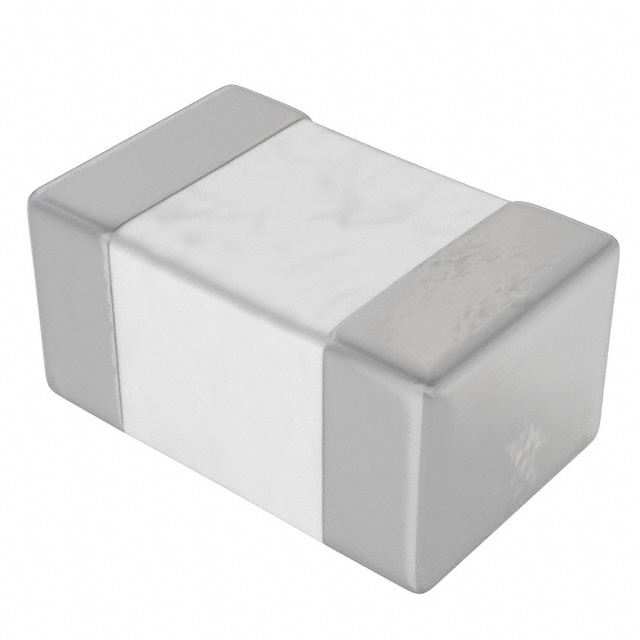

LRW0805WKR39GG001E _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	LRW0805WKR39GG001E
Manufacturer	Johanson Technology
Other Part Numbers	712-LRW0805WKR39GG001ETR-ND 712-LRW0805WKR39GG001ETR L-15WR39KV4E-ND L-15WR39KV4E
Description	FIXED IND 390NH 210MA 2.2OHM SMD
Detailed Description	390 nH Unshielded Drum Core, Wirewound Inductor 210 mA 2.2Ohm Max 0805 (2012 Metric)
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Johanson Technology
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±10%
Package / Case		0805 (2012 Metric)
Size / Dimension		0.079" L x 0.049" W (2.00mm x 1.25mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		2.2Ohm Max
Q @ Freq		45 @ 250MHz
Frequency - Self Resonant		780MHz
Material - Core		Ceramic
Inductance Frequency - Test		100 MHz
Supplier Device Package		0805 (2012 Metric)
Height - Seated (Max)		0.055" (1.40mm)
Inductance		390 nH
Current Rating (Amps)		210 mA

RESOURCE TYPE		LINK
Datasheets		LRW0805WKR39GG001E

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
