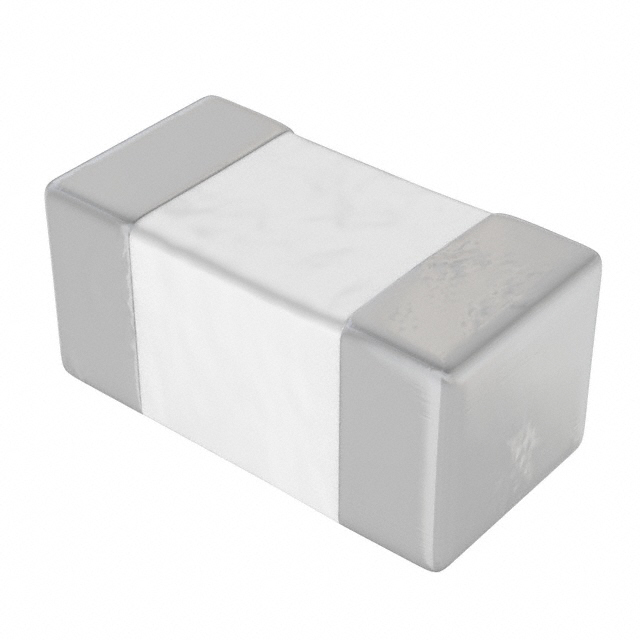

LRC0402CJ23NGV001T _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	LRC0402CJ23NGV001T
Manufacturer	Johanson Technology
Other Part Numbers	712-LRC0402CJ23NGV001TTR-ND 712-LRC0402CJ23NGV001TTR L-07C23NJV6T L-07C23NJV6T-ND
Description	FIXED IND 23NH 200MA 850MOHM SMD
Detailed Description	23 nH Unshielded Multilayer Inductor 200 mA 850mOhm Max 0402 (1005 Metric)
Manufacturer Standard Lead Time	21 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Johanson Technology
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		0402 (1005 Metric)
Size / Dimension		0.039" L x 0.020" W (1.00mm x 0.50mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Multilayer
Operating Temperature		-55°C ~ 100°C
DC Resistance (DCR)		850mOhm Max
Q @ Freq		8 @ 100MHz
Frequency - Self Resonant		2.1GHz
Material - Core		Ceramic
Inductance Frequency - Test		100 MHz
Supplier Device Package		0402 (1005 Metric)
Height - Seated (Max)		0.024" (0.60mm)
Inductance		23 nH
Current Rating (Amps)		200 mA

RESOURCE TYPE		LINK
Datasheets		LRC0402CJ23NGV001T

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
