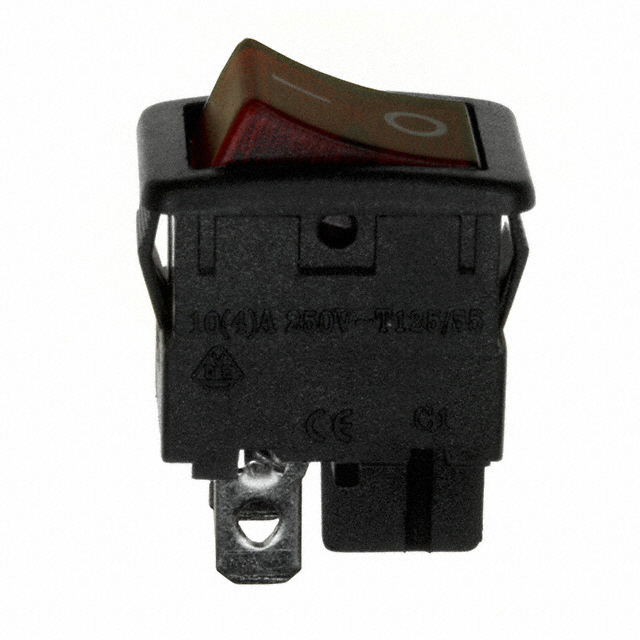

LRA22H2FBRLN

LRA22H2FBRLN

Part Number	LRA22H2FBRLN
Manufacturer	ZF Electronics
Other Part Numbers	CH774-ND 2266-LRA22H2FBRLN CH774
Description	SWITCH ROCKER SPST 10A 125V
Detailed Description	Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Rocker Switches
Manufacturer		ZF Electronics
Series		LR
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		10A (AC)
Mounting Type		Panel Mount, Snap-In
Circuit		SPST
Switch Function		On-Off
Operating Temperature		-20°C ~ 65°C
Termination Style		Quick Connect - 0.187" (4.7mm)
Illumination Type, Color		Neon, Red
Illumination Voltage (Nominal)		125 VAC
Actuator Type		Concave (Curved) - Illuminated
Approval Agency		CE, cULus, VDE
Panel Cutout Dimensions		Rectangular - 19.10mm x 12.90mm
Color - Actuator/Cap		Red
Actuator Marking		O -
Voltage Rating - AC		125 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LRA22H2FBRLN

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2008

Can ship immediately.
