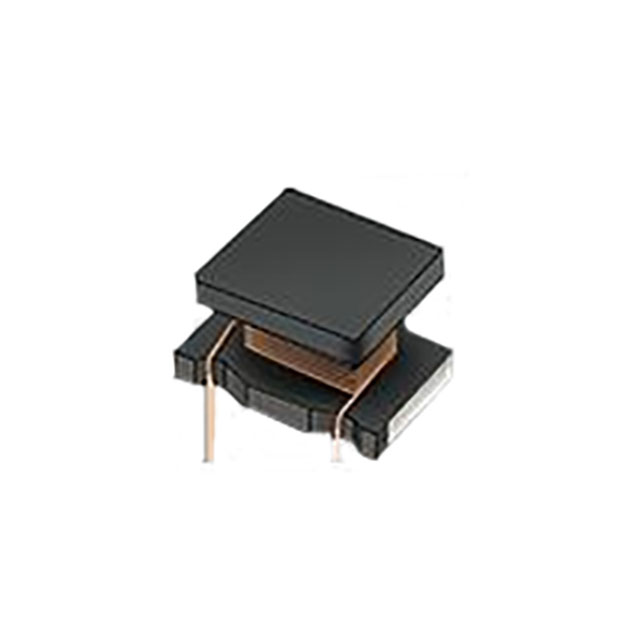

LQH32CN330K53L

Part Number
LQH32CN330K53L
Manufacturer TOKO / Murata
Other Part Numbers
490-4062-2-ND
490-4062-1-ND
490-4062-6-ND
490-4062-6
490-4062-1
490-4062-2
Description FIXED IND 33UH 200MA 1.43OHM SMD
Detailed Description 33 µH Unshielded Drum Core, Wirewound Inductor 200 mA 1.43Ohm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer TOKO / Murata
Series
LQH32
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Discontinued
Tolerance ±10%
Package / Case Nonstandard
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 1.43Ohm Max
Frequency - Self Resonant 17MHz
Material - Core Ferrite
Inductance Frequency - Test 1 MHz
Supplier Device Package 1210 (3225 Metric)
Height - Seated (Max) 0.067" (1.70mm)
Inductance 33 µH
Current Rating (Amps) 200 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets LQH32CN330K53L
Datasheets LQH32C_53 Series End
Datasheets LQH32C_53 Series Side

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Discontinued

This product is no longer for sale.
