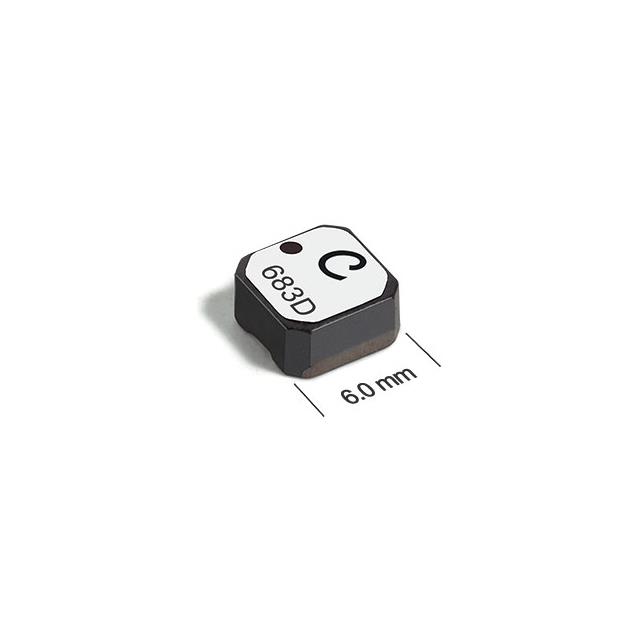

LPS6235-334MRC

Part Number
LPS6235-334MRC
Manufacturer COILCRAFT
Other Part Numbers
2457-LPS6235-334MRC-ND
2457-LPS6235-334MRC
Description POWER INDUCTOR, SHIELDED, 20% TO
Detailed Description 330 µH Shielded Drum Core Inductor 400 mA 1.2Ohm Max 2424 (6060 Metric)
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
LPS6235
Packaging
Strip
Part Status Active
Tolerance ±20%
Package / Case 2424 (6060 Metric)
Size / Dimension 0.244" L x 0.244" W (6.20mm x 6.20mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 1.2Ohm Max
Frequency - Self Resonant 4.4MHz
Ratings AEC-Q200
Current - Saturation (Isat) 260mA
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Supplier Device Package 2424
Height - Seated (Max) 0.138" (3.50mm)
Inductance 330 µH
Current Rating (Amps) 400 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets LPS6235-334MRC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
