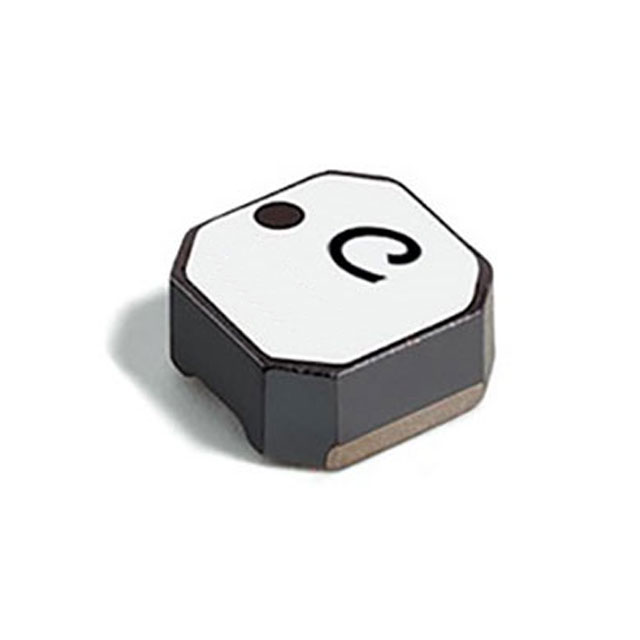

LPS4018-683MRC

Part Number
LPS4018-683MRC
Manufacturer COILCRAFT
Other Part Numbers
2457-LPS4018-683MRC-ND
2457-LPS4018-683MR_
2457-LPS4018-683MR_-ND
2457-LPS4018-683MRC
2457-LPS4018-683MR_TR-ND
Description FIXED IND 68UH 560MA 950MOHM SMD
Detailed Description 68 µH Shielded Drum Core Inductor 400 mA 950mOhm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
LPS4018
Packaging
Strip
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.154" L x 0.154" W (3.90mm x 3.90mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 950mOhm Max
Frequency - Self Resonant 13MHz
Ratings AEC-Q200
Current - Saturation (Isat) 410mA
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.071" (1.80mm)
Inductance 68 µH
Current Rating (Amps) 400 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets LPS4018-683MRC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
