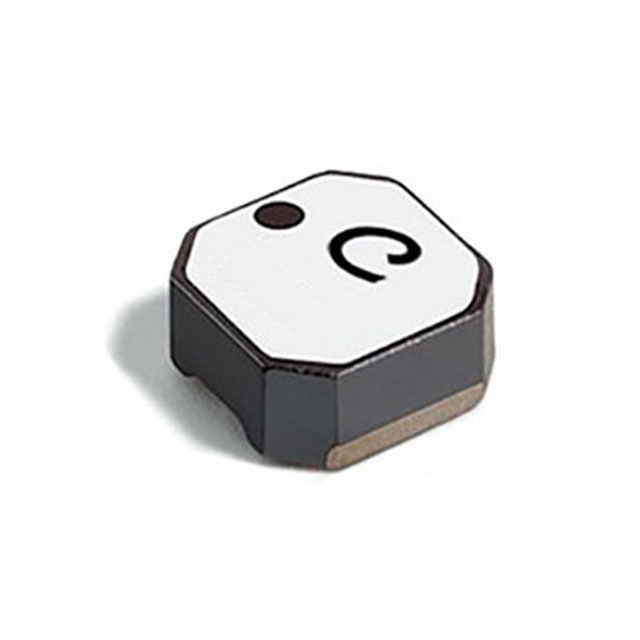

LPS4018-124MRC

Part Number
LPS4018-124MRC
Manufacturer COILCRAFT
Other Part Numbers
2457-LPS4018-124MRC-ND
2457-LPS4018-124MR_TR-ND
2457-LPS4018-124MR_
2457-LPS4018-124MR_-ND
2457-LPS4018-124MRC
Description FIXED IND 120UH 450MA 1.6OHM SMD
Detailed Description 120 µH Shielded Drum Core Inductor 300 mA 1.6Ohm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
LPS4018
Packaging
Strip
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.154" L x 0.154" W (3.90mm x 3.90mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 1.6Ohm Max
Frequency - Self Resonant 9MHz
Ratings AEC-Q200
Current - Saturation (Isat) 310mA
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.071" (1.80mm)
Inductance 120 µH
Current Rating (Amps) 300 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets LPS4018-124MRC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
