LPC2132FBD64/01,11 _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	LPC2132FBD64/01,11
Manufacturer	NXP Semiconductors
Other Part Numbers	LPC2132FBD64/01,11-ND 935281772118
Description	IC MCU 16/32BIT 64KB FLSH 64LQFP
Detailed Description	ARM7® LPC2100 Microcontroller IC 16/32-Bit 60MHz 64KB (64K x 8) FLASH 64-LQFP (10x10)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		NXP Semiconductors
Series		LPC2100
Packaging		Tape & Reel (TR)
Part Status		Not For New Designs

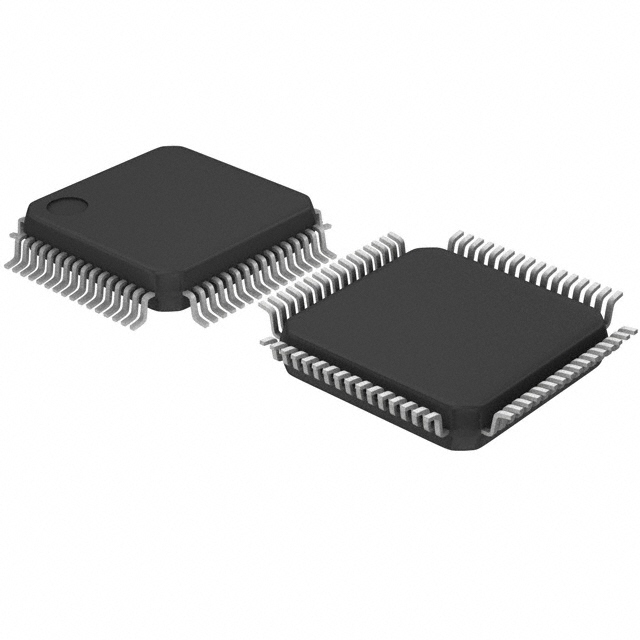

Package / Case		64-LQFP
Mounting Type		Surface Mount
Speed		60MHz
Program Memory Size		64KB (64K x 8)
RAM Size		16K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		ARM7®
Data Converters		A/D 8x10b SAR; D/A 1x10b
Core Size		16/32-Bit
Voltage - Supply (Vcc/Vdd)		3V ~ 3.6V
Connectivity		I2C, Microwire, SPI, SSI, SSP, UART/USART
Peripherals		Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package		64-LQFP (10x10)
Number of I/O		47
DigiKey Programmable		Not Verified

ATTRIBUTE		DESCRIPTION
ECCN		3A991A2
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Not recommended for new design, minimums may apply.
