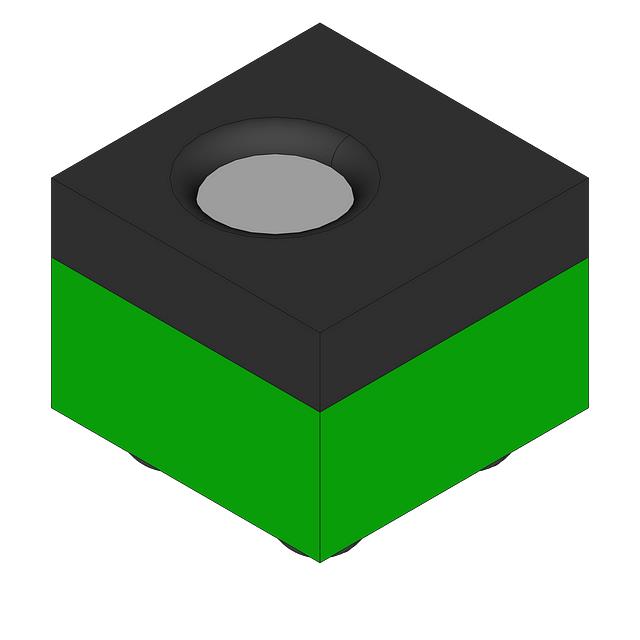

LP5904TMX-3.4/NOPB _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LP5904TMX-3.4/NOPB
Manufacturer	National Semiconductor
Other Part Numbers	2156-LP5904TMX-3.4/NOPB-ND 2156-LP5904TMX-3.4/NOPB TEXNSCLP5904TMX-3.4/NOPB
Description	IC REG LINEAR FIXED STNDRD REG
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 4-DSBGA (0.9x0.9)

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		National Semiconductor
Series
Packaging		Bulk
Part Status		Active
Package / Case		4-WFBGA, DSBGA
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		200mA
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive
Current - Quiescent (Iq)		20 µA
Voltage - Input (Max)		5.5V
Number of Regulators		1
Supplier Device Package		4-DSBGA (0.9x0.9)
Voltage - Output (Min/Fixed)		3.4V
Control Features		Enable
PSRR		88dB ~ 30dB (100Hz ~ 2MHz)
Voltage Dropout (Max)		0.15V @ 200mA
Protection Features		Over Temperature, Short Circuit
Current - Supply (Max)		325 µA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
