LP2986IMMX-5.0 _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LP2986IMMX-5.0
Manufacturer	National Semiconductor
Other Part Numbers	2156-LP2986IMMX-5.0-ND 2156-LP2986IMMX-5.0 TEXNSCLP2986IMMX-5.0
Description	IC REG LINEAR 5V 200MA 8MSOP PWR
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 8-MSOP-PowerPad

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		National Semiconductor
Series
Packaging		Bulk
Part Status		Active

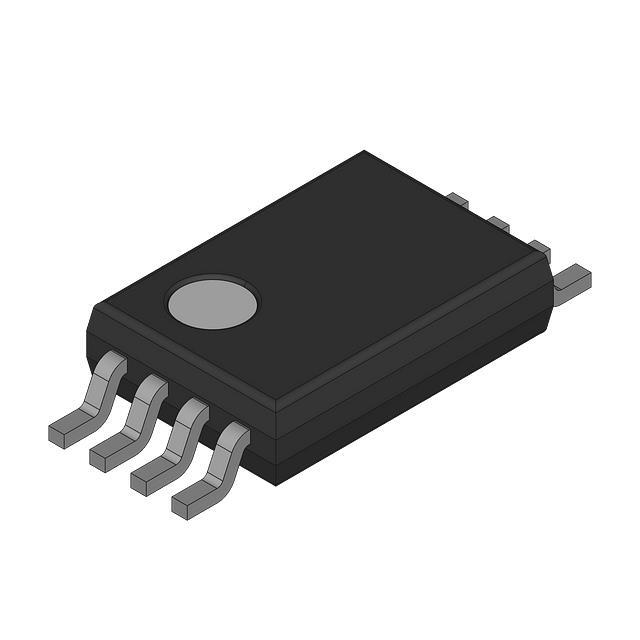

Package / Case		8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		200mA
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive
Current - Quiescent (Iq)		150 µA
Voltage - Input (Max)		16V
Number of Regulators		1
Supplier Device Package		8-MSOP-PowerPad
Voltage - Output (Min/Fixed)		5V
Control Features		Enable
PSRR		65dB (1kHz)
Voltage Dropout (Max)		0.35V @ 200mA
Protection Features		Over Current, Over Temperature, Short Circuit
Current - Supply (Max)		3.7 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
