LP2985IM5-3.1 _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LP2985IM5-3.1
Manufacturer	National Semiconductor
Other Part Numbers	2156-LP2985IM5-3.1-ND NATNSCLP2985IM5-3.1 2156-LP2985IM5-3.1
Description	IC REG LINEAR FIXED POS LDO REG
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		National Semiconductor
Series
Packaging		Bulk
Part Status		Active

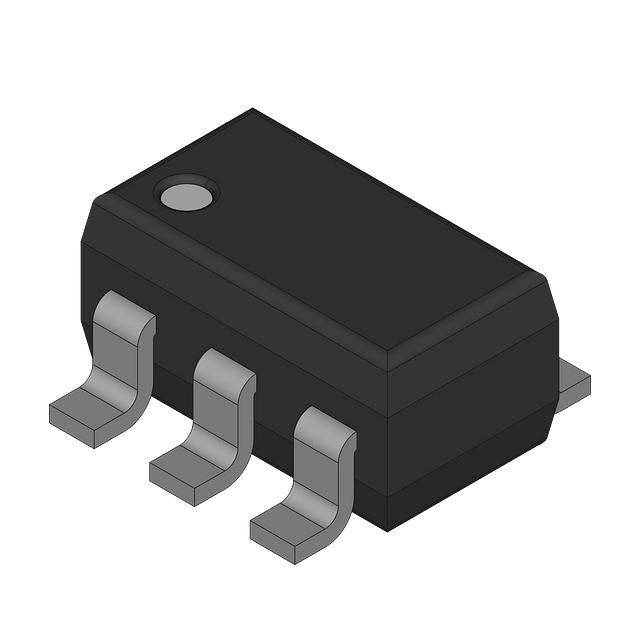

Package / Case		SC-74A, SOT-753
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		150mA
Operating Temperature		-40°C ~ 125°C
Output Configuration		Positive
Current - Quiescent (Iq)		95 µA
Voltage - Input (Max)		16V
Number of Regulators		1
Supplier Device Package		SOT-23-5
Voltage - Output (Min/Fixed)		3.1V
Control Features		Enable
PSRR		45dB (1kHz)
Voltage Dropout (Max)		0.58V @ 150mA
Protection Features		Over Current, Over Temperature, Short Circuit
Current - Supply (Max)		2.5 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
