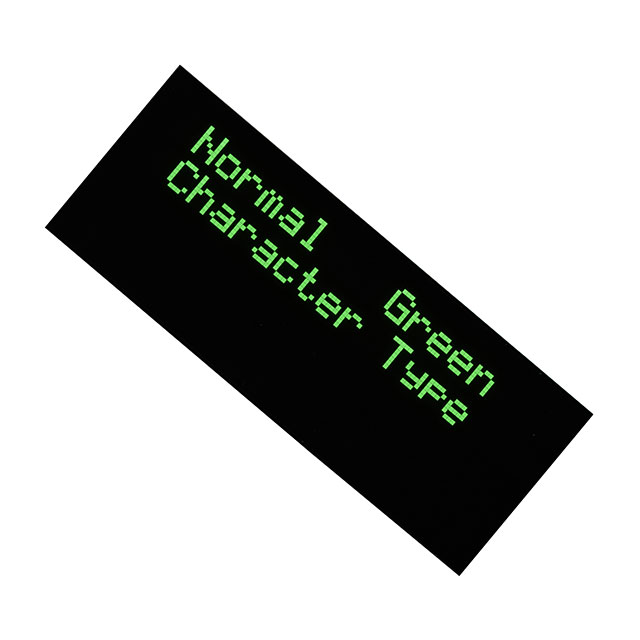

LOD-H02004DP-G

LOD-H02004DP-G

Part Number	LOD-H02004DP-G
Manufacturer	Lumex, Inc.
Other Part Numbers	67-2253-ND 67-2253
Description	OLED MODULE 80DIG 20 X 4 PASSIVE
Detailed Description	Character Display Module Passive 5 x 8 Dots OLED Parallel, 8-Bit 98.00mm x 60.00mm x 2.20mm
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LCD, OLED Character and Numeric
Manufacturer		Lumex, Inc.
Series
Packaging		Box
Part Status		Active
Display Type		OLED
Display Mode		Passive
Interface		Parallel, 8-Bit
Operating Temperature		-40°C ~ 80°C
Voltage - Supply		2.4V ~ 5.5V
Viewing Area		72.42mm L x 22.82mm W
Character Size		4.77mm H x 2.97mm W
Display Format		20 x 4
Character Format		5 x 8 Dots
Dot Size		0.57mm W x 0.57mm H
Outline L x W x H		98.00mm x 60.00mm x 2.20mm
Text Color		Green
Background Color		Black
Number of Characters		80.0

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Lumex RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8531.20.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
