LO L29K-H2K1-24-Z

Part Number
LO L29K-H2K1-24-Z
Manufacturer ams-OSRAM USA INC.
Other Part Numbers
475-LOL29K-H2K1-24-ZTR-ND
475-LOL29K-H2K1-24-ZCT-ND
475-LOL29K-H2K1-24-ZDKR-ND
475-2740-6
LO L29K-H2K1-24
475-2740-2-ND
475-2740-2
475-2740-1-ND
475-2740-1
4991-LOL29K-H2K1-24-ZDKR
4991-LOL29K-H2K1-24-ZTR
475-LOL29K-H2K1-24-ZCT
Q65110A1747
475-LOL29K-H2K1-24-ZDKR
4991-LOL29K-H2K1-24-ZTR-ND
4991-LOL29K-H2K1-24-ZDKR-ND
4991-LOL29K-H2K1-24-ZCT-ND
475-2740-6-ND
LOL29K-H2K1-24
475-LOL29K-H2K1-24-ZTR
LOL29KH2K124Z
LOL29K-H2K1-24-Z
4991-LOL29K-H2K1-24-ZCT
LOL29KH2K124

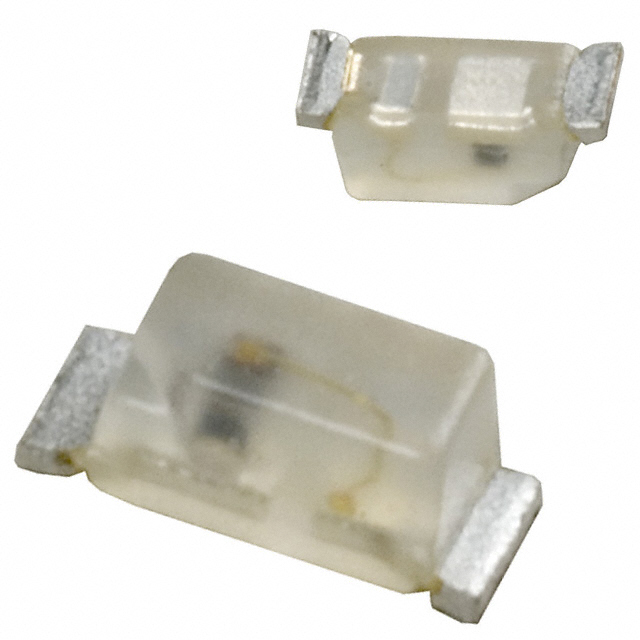

Description LED ORANGE DIFFUSED 0603 SMD
Detailed Description Orange 606nm LED Indication - Discrete 1.8V 0603 (1608 Metric)
Datasheet Datasheet

Product Attributes

Category
Manufacturer ams-OSRAM USA INC.
Series
SMARTLED® 0603
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Not For New Designs
Package / Case 0603 (1608 Metric)
Color Orange
Size / Dimension 1.70mm L x 0.80mm W
Mounting Type Surface Mount
Millicandela Rating 6.3mcd
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.8V
Lens Color White
Current - Test 2mA
Viewing Angle 160°
Height (Max) 0.65mm
Wavelength - Peak 610nm
Wavelength - Dominant 606nm
Supplier Device Package 0603
Lens Transparency Diffused
Lens Style Rectangle with Flat Top
Lens Size 1.30mm x 0.80mm

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Not recommended for new design, minimums may apply.
