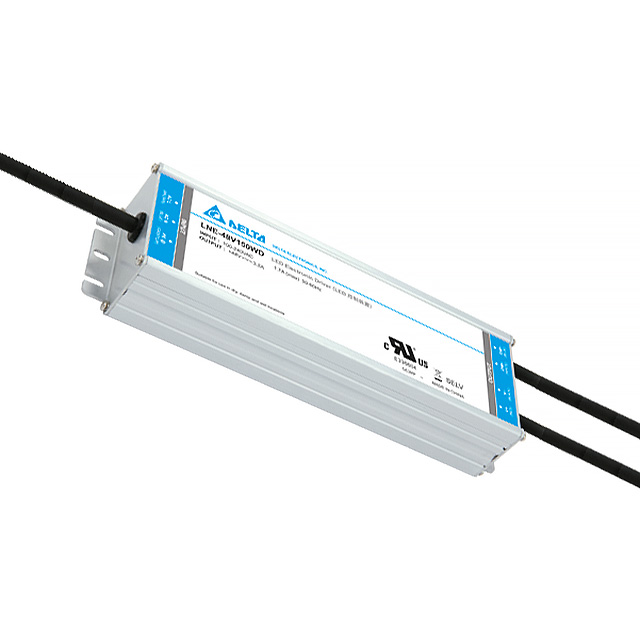

Part Number |
LNE-48V150WDAA
|
---|---|
Manufacturer | Delta Electronics / Fans |
Other Part Numbers |
1145-1184-ND
1145-1184
LNE-48V150WDA
|
Description | LED DRIVER CC/CV AC/DC 48V 3.2A |
Detailed Description | 3.2A 24 ~ 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Delta Electronics / Fans | |
Series |
LNE-150W
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Features | OCP, OTP, OVP, SCP | |
Size / Dimension | 8.03" L x 2.68" W x 1.53" H (204.0mm x 68.0mm x 38.8mm) | |
Voltage - Output | 24 ~ 48V | |
Mounting Type | Chassis Mount | |
Type | Constant Current, Voltage | |
Weight | 2.4 lbs (1.1 kg) | |
Operating Temperature | -40°C ~ 70°C | |
Termination Style | Wire Leads | |
Voltage - Input (Max) | 305VAC | |
Approval Agency | UL | |
Ratings | IP67 | |
Efficiency | 94% | |
Topology | AC DC Converter | |
Current - Output (Max) | 3.2A | |
Dimming | Analog, PWM | |
Voltage - Input (Min) | 90VAC | |
Power (Watts) | 150 W | |
Number of Outputs | 1 | |
Voltage - Isolation | 3.85 kV | |
Standard Number | 50581; 55011; 55032; 60601-1; 60950-1 | |
DigiKey Programmable | Not Verified |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | End of Life 26/OCT/2021 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.40.9520 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
