LMX2502LQ1635

LMX2502LQ1635

Part Number	LMX2502LQ1635
Manufacturer	National Semiconductor
Other Part Numbers	2156-LMX2502LQ1635-ND 2156-LMX2502LQ1635 TEXNSCLMX2502LQ1635
Description	PLL FREQUENCY SYNTHESIZER
Detailed Description	RF IC Frequency Synthesizer CDMA, PCS 1.6196GHz ~ 1.6496GHz Integrated PLL and VCO 28-WQFN (5x5)

Product Attributes

Category		RF and Wireless RF Misc ICs and Modules
Manufacturer		National Semiconductor
Series
Packaging		Bulk
Part Status		Active

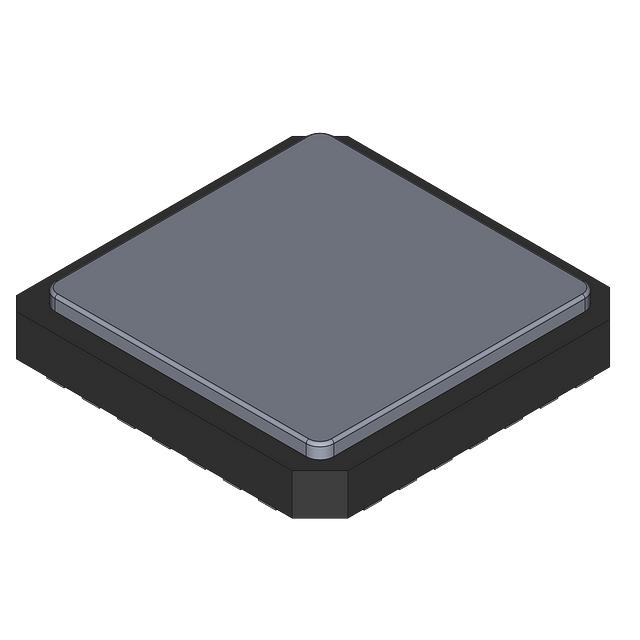

Package / Case		28-FQFN Exposed Pad
Mounting Type		Surface Mount
Function		Frequency Synthesizer
Frequency		1.6196GHz ~ 1.6496GHz
RF Type		CDMA, PCS
Secondary Attributes		Integrated PLL and VCO
Supplier Device Package		28-WQFN (5x5)

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		5A991G
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
