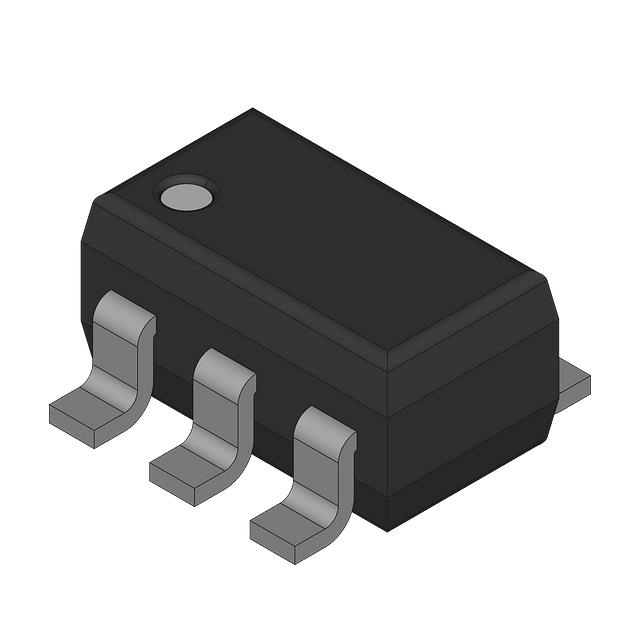

LMV431CM5X

LMV431CM5X

Part Number	LMV431CM5X
Manufacturer	National Semiconductor
Other Part Numbers	2156-LMV431CM5X-ND NATNSCLMV431CM5X 2156-LMV431CM5X
Description	IC VREF SHUNT ADJ 1.5% SOT23-5
Detailed Description	Shunt Voltage Reference IC Adjustable 1.24V 30 VV ±1.5% 15 mA SOT-23-5

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Reference
Manufacturer		National Semiconductor
Series
Packaging		Bulk
Part Status		Active
Tolerance		±1.5%
Package / Case		SC-74A, SOT-753
Output Type		Adjustable
Mounting Type		Surface Mount
Reference Type		Shunt
Operating Temperature		0°C ~ 70°C (TA)
Supplier Device Package		SOT-23-5
Voltage - Output (Min/Fixed)		1.24V
Current - Cathode		80 µA
Current - Output		15 mA
Voltage - Output (Max)		30 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
