LMG3522R030QRQSTQ1 _ Power Distribution Switches, Load Drivers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LMG3522R030QRQSTQ1
Manufacturer	Texas Instruments
Other Part Numbers	296-LMG3522R030QRQSTQ1TR-ND 296-LMG3522R030QRQSTQ1CT-ND 296-LMG3522R030QRQSTQ1DKR-ND 296-LMG3522R030QRQSTQ1CT 296-LMG3522R030QRQSTQ1DKR 296-LMG3522R030QRQSTQ1TR
Description	AUTOMOTIVE 650-V 30-M GAN FET WI
Detailed Description	Power Switch/Driver 1:1 N-Channel 38A 52-VQFN (12x12)
Manufacturer Standard Lead Time	12 weeks

Category		Integrated Circuits (ICs) Power Management (PMIC) Power Distribution Switches, Load Drivers
Manufacturer		Texas Instruments
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Slew Rate Controlled, Status Flag

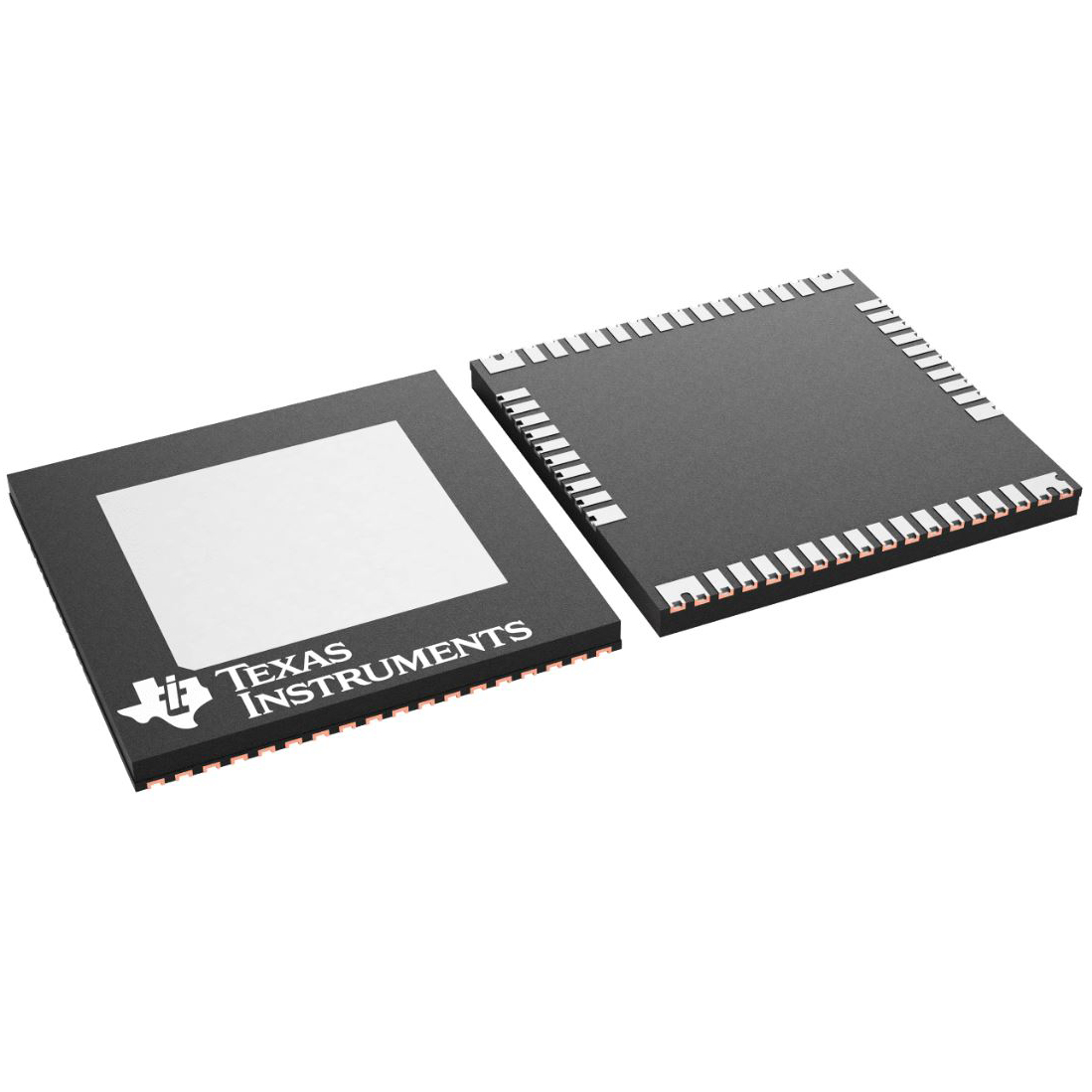

Package / Case		52-VQFN Exposed Pad
Output Type		N-Channel
Mounting Type		Surface Mount, Wettable Flank
Number of Outputs		1
Interface		PWM
Switch Type		General Purpose
Operating Temperature		-40°C ~ 125°C (TA)
Output Configuration		Low Side
Rds On (Typ)		26mOhm
Input Type		Non-Inverting
Voltage - Load		650V
Voltage - Supply (Vcc/Vdd)		7.5V ~ 18V
Current - Output (Max)		38A
Ratio - Input:Output		1:1
Supplier Device Package		52-VQFN (12x12)
Fault Protection		Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO
Grade		Automotive
Qualification		AEC-Q100

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
