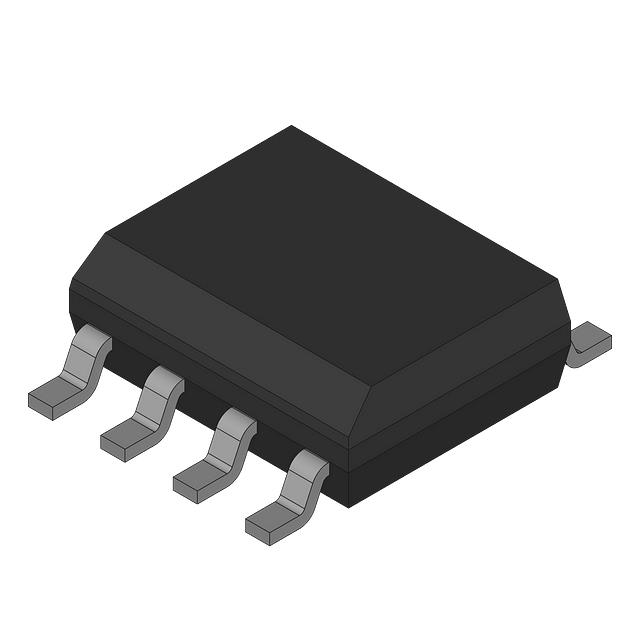

LM76CHM-5

LM76CHM-5

Part Number	LM76CHM-5
Manufacturer	National Semiconductor
Other Part Numbers	2156-LM76CHM-5-ND NATNSCLM76CHM-5 2156-LM76CHM-5
Description	SERIAL SWITCH/DIGITAL SENSOR, 13
Detailed Description	Temperature Sensor Digital, Local -20°C ~ 85°C 13 b 8-SOIC

Product Attributes

Category		Sensors, Transducers Temperature Sensors Analog and Digital Output
Manufacturer		National Semiconductor
Series
Packaging		Bulk
Part Status		Active
Features		Output Switch, Programmable Limit, Shutdown Mode
Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		2-Wire Serial, I2C/SMBUS
Mounting Type		Surface Mount
Operating Temperature		-20°C ~ 85°C
Voltage - Supply		4.5V ~ 5.5V
Sensor Type		Digital, Local
Resolution		13 b
Supplier Device Package		8-SOIC
Test Condition		25°C (-10°C ~ 45°C)
Accuracy - Highest (Lowest)		±0.5°C (±1°C)
Sensing Temperature - Local		-20°C ~ 85°C

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
