LM7171BIM-NS _ Instrumentation, OP Amps, Buffer Amps_Amplifiers_Linear_Integrated Circuits (ICs)

Part Number	LM7171BIM-NS
Manufacturer	National Semiconductor
Other Part Numbers	2156-LM7171BIM-NS-ND 2156-LM7171BIM-NS TEXNSCLM7171BIM
Description	IC VOLTAGE FEEDBACK 1 CIRC 8SOIC
Detailed Description	Voltage Feedback Amplifier 1 Circuit 8-SOIC

Category		Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps
Manufacturer		National Semiconductor
Series
Packaging		Bulk
Part Status		Active

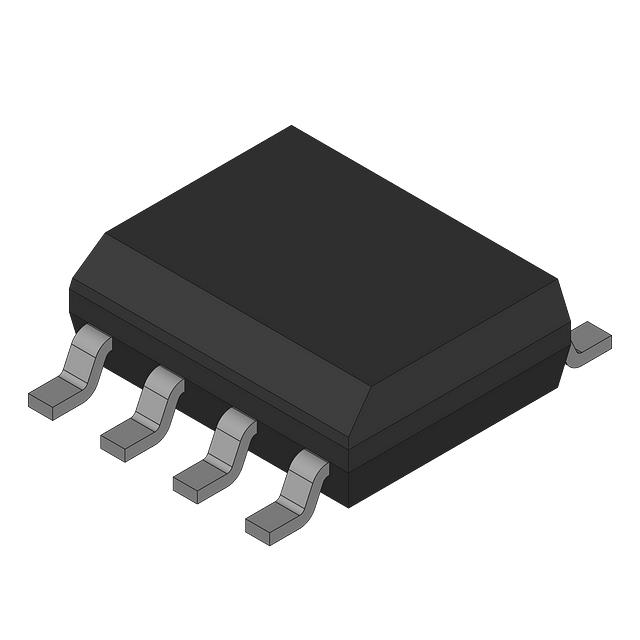

Package / Case		8-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Amplifier Type		Voltage Feedback
Operating Temperature		-40°C ~ 85°C
Current - Supply		6.5mA
Slew Rate		4100V/µs
Gain Bandwidth Product		200 MHz
Current - Input Bias		2.7 µA
Voltage - Input Offset		200 µV
Supplier Device Package		8-SOIC
Number of Circuits		1
Current - Output / Channel		118 mA
-3db Bandwidth		220 MHz
Voltage - Supply Span (Min)		5.5 V
Voltage - Supply Span (Max)		36 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.33.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
