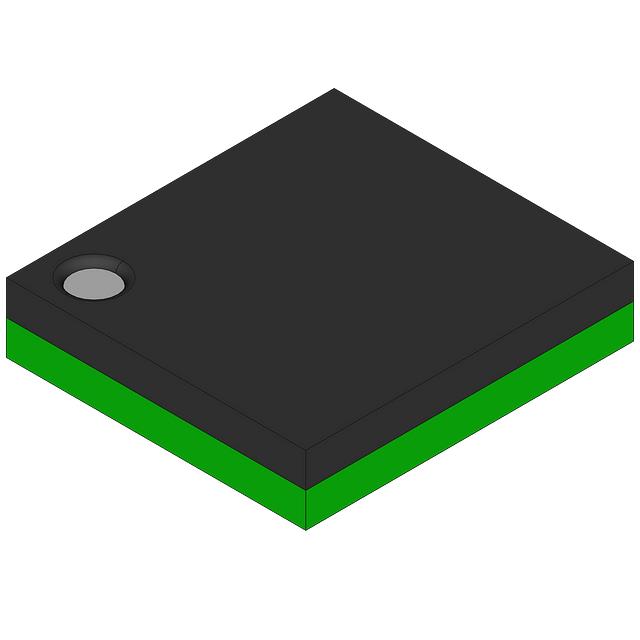

LM4949TLX/NOPB

Part Number
LM4949TLX/NOPB
Manufacturer National Semiconductor
Other Part Numbers
2156-LM4949TLX/NOPB-ND
2156-LM4949TLX/NOPB
NATNSCLM4949TLX/NOPB
Description VOLUME CONTROL CIRCUIT, PBGA25
Detailed Description Amplifier IC 2-Channel (Stereo) with Stereo Headphones Class D 25-µSMD (2.7x2.7)

Product Attributes

Category
Manufacturer National Semiconductor
Series
Boomer®
Packaging
Bulk
Part Status Active
Features Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control
Package / Case 25-WFBGA
Output Type 2-Channel (Stereo) with Stereo Headphones
Mounting Type Surface Mount
Type Class D
Operating Temperature -40°C ~ 85°C (TA)
Voltage - Supply 2.7V ~ 5.5V
Max Output Power x Channels @ Load 2.5W x 2 @ 4Ohm; 190mW x 2 @ 16Ohm
Supplier Device Package 25-µSMD (2.7x2.7)

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
