LM4936MHX/NOPB

Part Number
LM4936MHX/NOPB
Manufacturer National Semiconductor
Other Part Numbers
2156-LM4936MHX/NOPB-ND
2156-LM4936MHX/NOPB
TEXNSCLM4936MHX/NOPB
Description LM4936 STEREO 2W AUDIO POWER AMP
Detailed Description Amplifier IC 2-Channel (Stereo) with Stereo Headphones Class AB 28-HTSSOP

Product Attributes

Category
Manufacturer National Semiconductor
Series
Boomer®
Packaging
Bulk
Part Status Active
Features Bass Boost, Depop, I2C, Mute, Shutdown, SPI, Thermal Protection, Volume Control

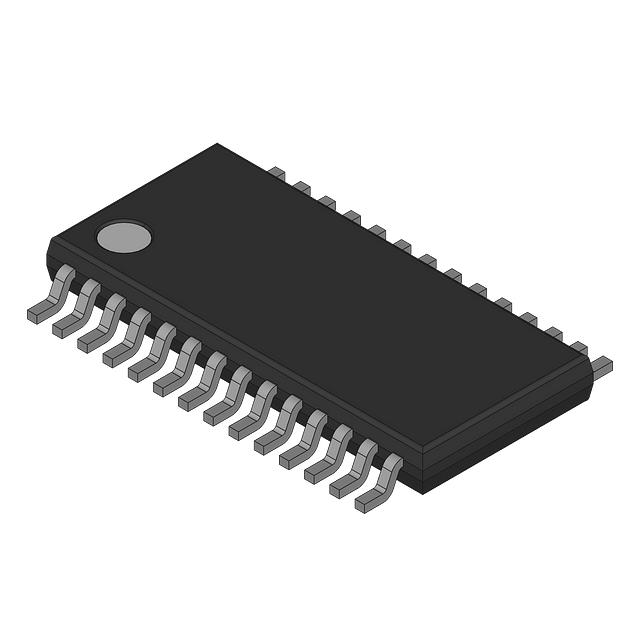

Package / Case 28-PowerTSSOP (0.173", 4.40mm Width)
Output Type 2-Channel (Stereo) with Stereo Headphones
Mounting Type Surface Mount
Type Class AB
Operating Temperature -40°C ~ 85°C (TA)
Voltage - Supply 2.7V ~ 5.5V
Max Output Power x Channels @ Load 2.2W x 2 @ 3Ohm; 110mW x 2 @ 32Ohm
Supplier Device Package 28-HTSSOP

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.33.0001
