LM3900M

Part Number
LM3900M
Manufacturer National Semiconductor
Other Part Numbers
2156-LM3900M-ND
2156-LM3900M
NATNSCLM3900M
Description IC OPAMP GP 4 CIRCUIT 14SOIC
Detailed Description General Purpose Amplifier 4 Circuit 14-SOIC

Product Attributes

Category
Manufacturer National Semiconductor
Series
Packaging
Bulk
Part Status Active

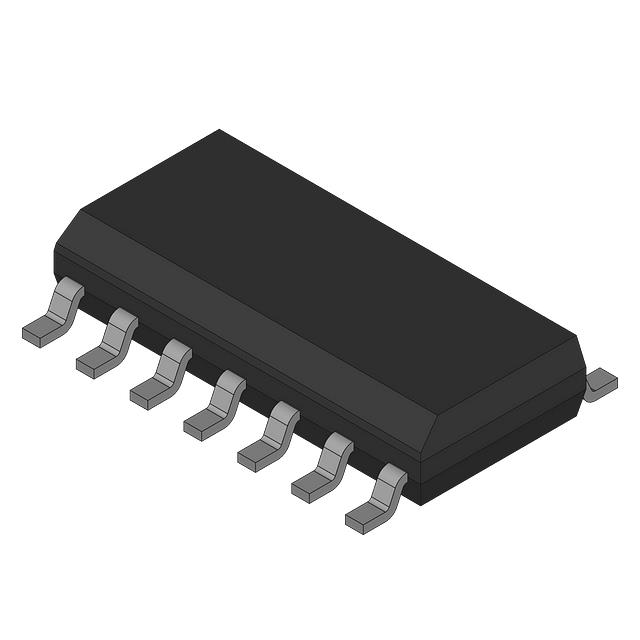

Package / Case 14-SOIC (0.154", 3.90mm Width)
Mounting Type Surface Mount
Amplifier Type General Purpose
Operating Temperature 0°C ~ 70°C
Current - Supply 6.2mA (x4 Channels)
Slew Rate 20V/µs
Gain Bandwidth Product 2.5 MHz
Current - Input Bias 30 nA
Supplier Device Package 14-SOIC
Number of Circuits 4
Current - Output / Channel 10 mA
Voltage - Supply Span (Min) 4.4 V
Voltage - Supply Span (Max) 32 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.33.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status Vendor Undefined
RoHS Status RoHS non-compliant

Available To Order
