LM3481QDGSRDE _ DC DC Switching Controllers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LM3481QDGSRDE
Manufacturer	Texas Instruments
Other Part Numbers	296-LM3481QDGSRDE-ND 296-LM3481QDGSRDE
Description	PROTOTYPE
Detailed Description	Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-VSSOP
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) DC DC Switching Controllers
Manufacturer		Texas Instruments
Series
Packaging		Bulk
Part Status		Active

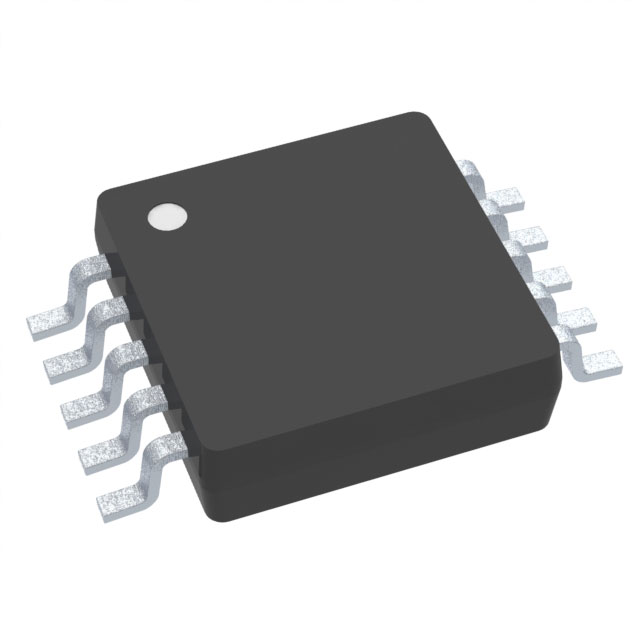

Package / Case		10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Output Type		Transistor Driver
Mounting Type		Surface Mount
Function		Step-Up, Step-Up/Step-Down
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive
Frequency - Switching		100kHz ~ 1MHz
Topology		Boost, Flyback, SEPIC
Voltage - Supply (Vcc/Vdd)		2.97V ~ 48V
Supplier Device Package		10-VSSOP
Synchronous Rectifier		No
Control Features		Enable, Frequency Control, Ramp, Soft Start
Output Phases		1
Duty Cycle (Max)		85%
Clock Sync		Yes
Grade		Automotive
Number of Outputs		1
Qualification		AEC-Q100

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
