LM2599T-3.3/NOPB _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	LM2599T-3.3/NOPB
Manufacturer	National Semiconductor
Other Part Numbers	2156-LM2599T-3.3/NOPB-ND 2156-LM2599T-3.3/NOPB TEXNSCLM2599T-3.3/NOPB
Description	IC REG BUCK 3.3V 3A TO220-7
Detailed Description	Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 3A TO-220-7 Formed Leads

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		National Semiconductor
Series		SIMPLE SWITCHER®
Packaging		Bulk
Part Status		Active

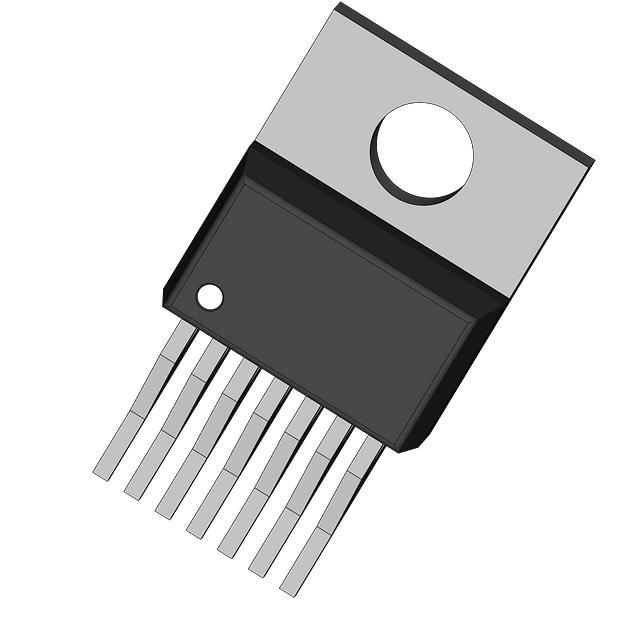

Package / Case		TO-220-7 Formed Leads
Output Type		Fixed
Mounting Type		Through Hole
Number of Outputs		1
Function		Step-Down
Current - Output		3A
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive
Frequency - Switching		150kHz
Voltage - Input (Max)		40V
Topology		Buck
Supplier Device Package		TO-220-7
Synchronous Rectifier		No
Voltage - Input (Min)		4.5V
Voltage - Output (Min/Fixed)		3.3V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
