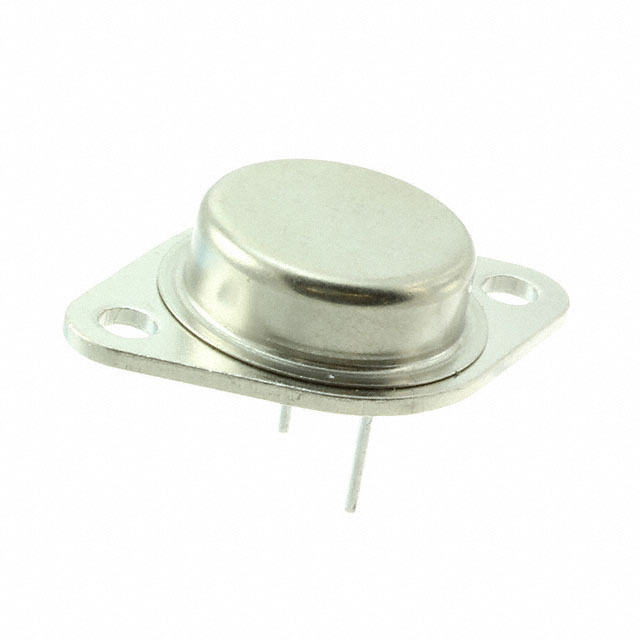

LM117K STEEL/NOPB

Part Number
LM117K STEEL/NOPB
Manufacturer Texas Instruments
Other Part Numbers
LM117KSTEEL/NOPB-ND
LM117KSTEEL/NOPB
TEXTISLM117K STEEL/NOPB
2156-LM117K STEEL/NOPB
LM117K STEEL/NOPB-ND
*LM117K STEEL/NOPB
LM117KSTEELNOPB
Description IC REG LINEAR POS ADJ 1.5A TO3-2
Detailed Description Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A TO-3-2
Manufacturer Standard Lead Time 6 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Texas Instruments
Series
Packaging
Tray
Part Status Active
Package / Case TO-204AA, TO-3
Output Type Adjustable
Mounting Type Through Hole
Current - Output 1.5A
Operating Temperature -55°C ~ 125°C
Output Configuration Positive
Current - Quiescent (Iq) 5 mA
Voltage - Input (Max) 40V
Number of Regulators 1
Supplier Device Package TO-3-2
Voltage - Output (Max) 37V
Voltage - Output (Min/Fixed) 1.25V
PSRR 80dB ~ 65dB (120Hz)
Protection Features Over Current, Over Temperature, Short Circuit

Documents & Media

RESOURCE TYPE LINK
Datasheets Wafer Fab Site 23/Mar/2020

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 9

Can ship immediately.
