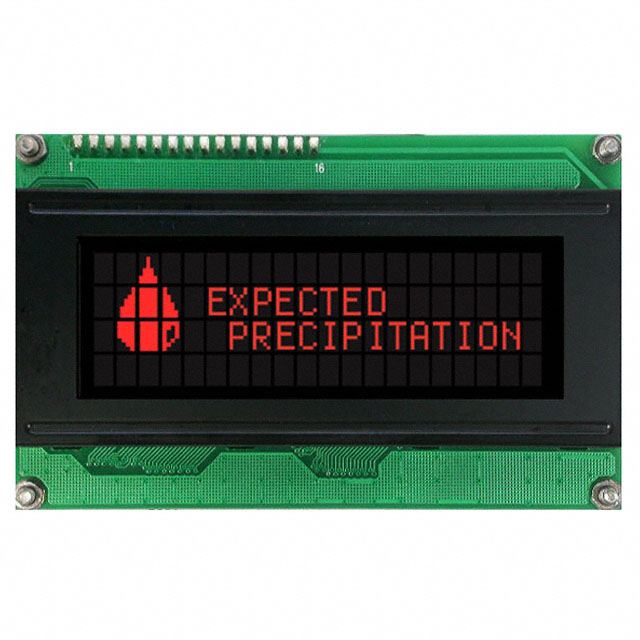

LK204-25-R-VPT _ LCD, OLED Character and Numeric_Optoelectronics

Part Number	LK204-25-R-VPT
Manufacturer	Matrix Orbital
Other Part Numbers	LK204-25-R-VPT-ND
Description	LCD MOD 80DIG 20X4 TRANSMISV RED
Detailed Description	Character Display Module Transmissive 5 x 8 Dots TN - Twisted Nematic LED - Red I2C, RS-232, TTL 98.00mm x 60.00mm x 28.98mm
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Optoelectronics LCD, OLED Character and Numeric
Manufacturer		Matrix Orbital
Series
Packaging		Bulk
Part Status		Active
Display Type		TN - Twisted Nematic
Display Mode		Transmissive
Backlight		LED - Red
Interface		I2C, RS-232, TTL
Operating Temperature		0°C ~ 50°C
Voltage - Supply		9V ~ 35V
Viewing Area		76.00mm L x 25.20mm W
Character Size		4.75mm H x 2.95mm W
Display Format		20 x 4
Character Format		5 x 8 Dots
Dot Size		0.55mm W x 0.55mm H
Outline L x W x H		98.00mm x 60.00mm x 28.98mm
Text Color		Red
Background Color		Black
Number of Characters		80

RESOURCE TYPE		LINK
Datasheets		LK204-25-R-VPT
Datasheets		LVOK204-25 09-Aug-2022
Datasheets		12C Displays Firmware Update 11/Oct/2011

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8531.20.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
